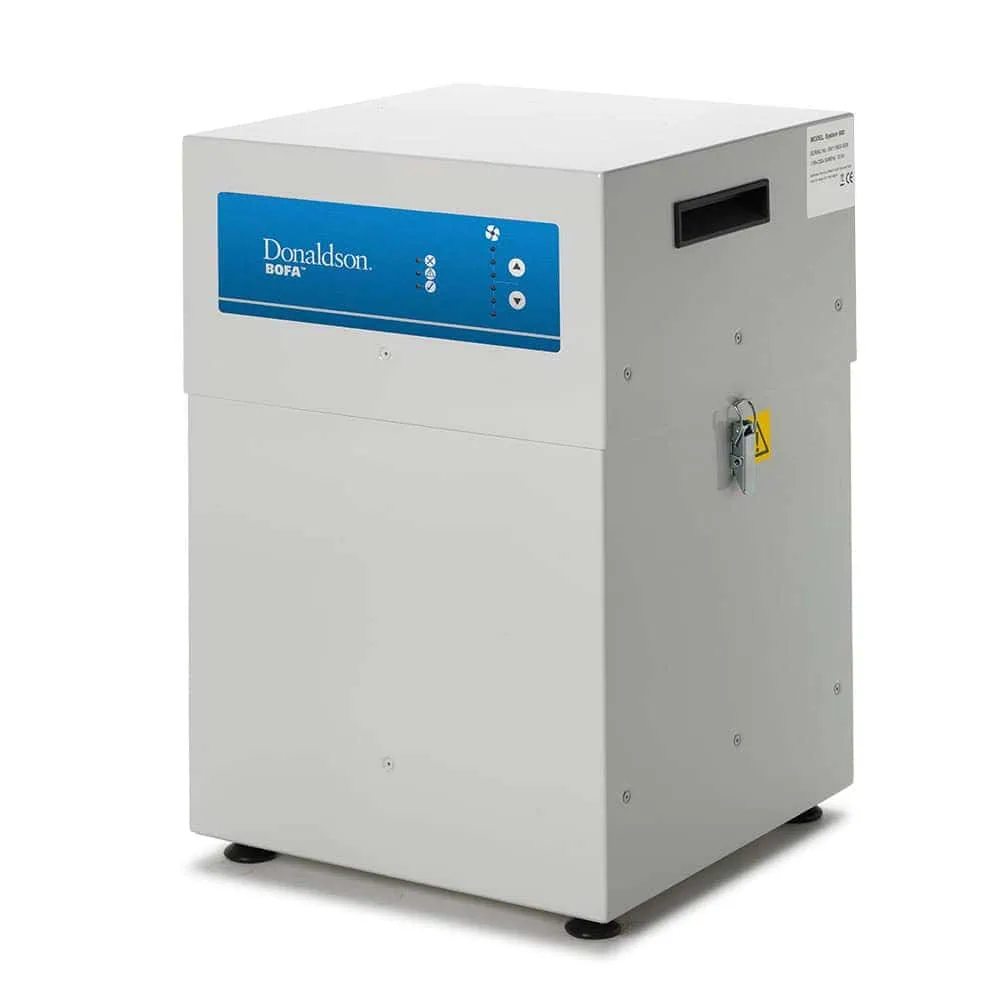

Bofa V600 Solder Fume Extractor
Part No. E1142A
BOFA’s high end range of extraction systems combine large filter capacity with high airflows and pressure. The V600 high volume extraction system offers protection against harmful fumes. This unit incorporates 3 stage filtration, filter condition display, and built in silencing. A truly state of the art fume purification solution.
The V600 features an automatic voltage sensor, allowing the system to be used with any power source between 90V-257V
Product Details
The Bofa V600 Solder Fume Extractor combines a large filter capacity with high airflows and pressure. The V600 high volume extraction system offers protection against harmful fumes. This unit incorporates 3 stage filtration, filter condition display, and built in silencing. A truly state of the art fume purification solution.
The V600 features an automatic voltage sensor, allowing the system to be used with any power source between 90V-257V
Features :
- Digital speed control
- DeepPleat pre filter
- Blower with high airflow and pressure
- 3 stage filtration
- Filter condition display
- Built in silencing
- Long life filters with low replacement costs
The V600 is the ideal unit for workshops featuring multiple electronics workers. The V600 allows support for up to 7 x 32mm arms working simultaneously.
The V600 features a three stage filtration process. The inital pre-filter stage captures larger particles, allowing the second stage, a HEPA filter, to capture the smallest particles from the soldering process. The third stage, a Carbon filter, absorbs smells and gases. This filtration process allows clean filtered air to be re-circulated back into the workshop safely.
See video below for more information regarding changing the filters.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Dimensions (L x W x H) | 465 x 405 x 590 mm |
Voltage | 230 V - 50/60 Hz |
Power Consumption | 1.1 kW |
Max. Negative Pressure | 96 mbar |
Max. Airflow | 350 m³/h |
Cabinet Construction | Powder Coated Mild Steel |
Weight | 35 kg |
Pre Filter Surface Area | Glass Fibre - 6 m² |
Pre Filter Efficiency | F8 - 95% @ 0.9 microns |
HEPA Filter Media | Glass Fibre |
Treated Activated Carbon | 7.5 kg |
HEPA Filter Efficiency | 99.997% @ 0.3 microns |
Sound Level | <60 dB(a) (at typical operating speed) |
Approvals | CE |
