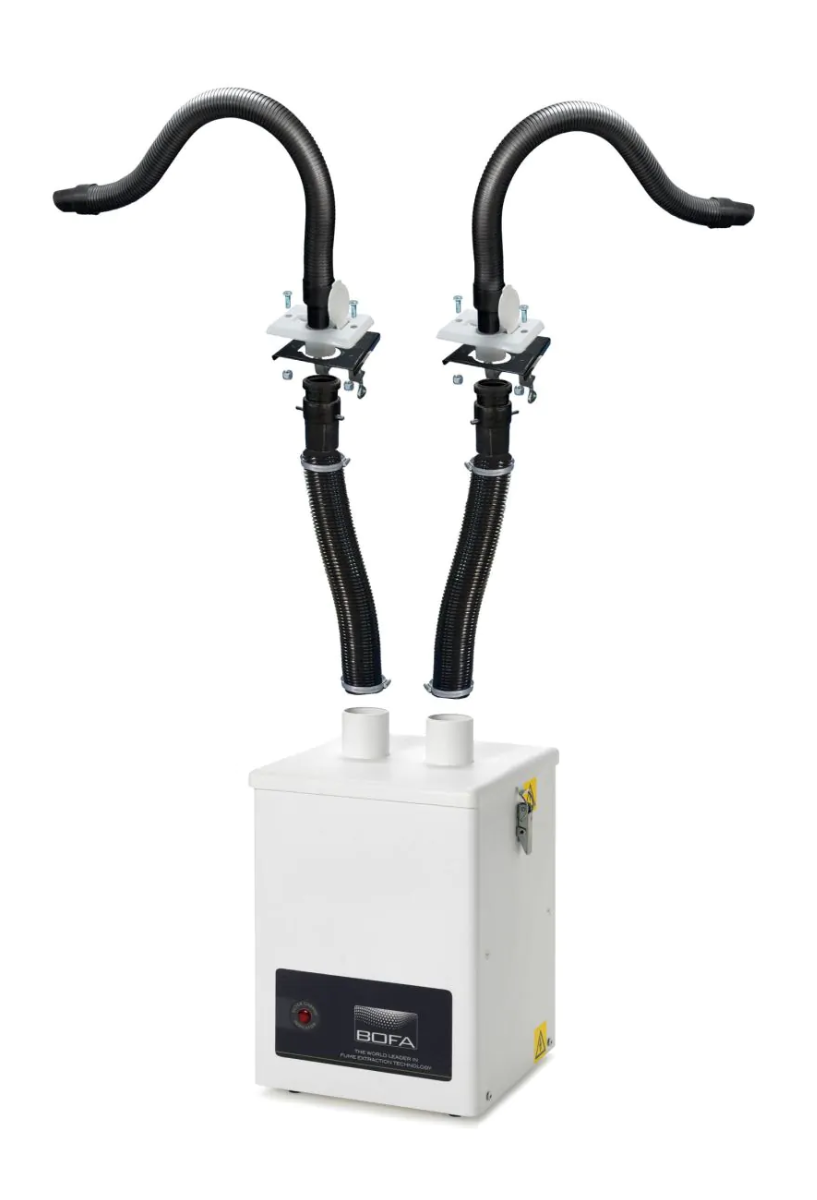

Bofa V250 Fume Extractor Kit

Part Nos. V250-Kit-E0842A0013, E0842A0000, E0841A0000, E0842A0001, E0841A0001, E0842A0003,

BOFA’s V 250 extraction unit has been designed to capture and remove fumes generated during hand soldering tasks. This portable system is offered in a number of configurations to cater for different workshop layouts and the kits contain everything required to set up 2 operators with ease.

All Units are supplied with Pre Filter & main HEPA/GAS filter. The main filter can be replaced with the Bofa Double GAS filter which replaces the HEPA filtration with additional active carbon.

Delivery normally within 4 weeks
£0
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£570.00 £475.00
£570.00 £475.00
Bofa
Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications. BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.
Get in touchIs this the right product for you?Ask us a question

Product Details

The Bofa V250 Solder Fume Extraction System has been designed primarily to extract the fumes generated during hand soldering in the electronics industry. This portable system comes complete with an extraction arm and installation kit that contains everything required to set up 2 operators with ease. Minimal installation allows this unit to be moved with the work bench when factory layouts need changing due to production challenges. The low noise level and fully comprehensive filtration is ideal for factories with changing production demands.

Standard Features:

  • Granulated carbon gas filter
  • Unique flip top flush sealing mounting plate
  • Filter Blocked Indicator
  • 99.997% HEPA Filtration

 The unit is available in three configurations as follows:

 1) Dual Arm Extraction Unit with Bench Mounting Arms:

  • Purpose built to protect two operators who are located either next or opposite each other:
  • Unique flip top flush sealing mounting plate
  • Two 50mm ESD Stay Put extraction arms
  • Installation flex and table bracket
  • Filter blocked indicator
  • 99.997% HEPA Filtration
Bofa V250 with bench mounting arms

 2) Dual Arm Extraction Unit With Unit Mounting Arms:

  •  Purpose built to protect two operators who are located either next to or opposite each other:
  • Two 1m long unit mounting Stay Put extraction arms
  • Filter blocked indicator
  • 99.997% HEPA Filtration
  Bofa V250 with unit mounting arms


 3) Dual Arm Extraction Unit with Bench Mounting Arms and Remote Airflow Control:

  • Purpose built to protect two operators who are located either next or opposite each other:
  • Unique flip top flush sealing mounting plate
  • Two 50mm ESD Stay Put extraction arms
  • Installation flex and table bracket
  • Remote airflow control
  • Filter blocked indicator
  • 99.997% HEPA Filtration



  Bofa V250 with bench mounting arms and remote airflow control

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

Bofa V250 Fume Extractor Kit
 Dimensions (L x W x H)  270 x 290 x 420 mm
 Voltage  230 V - 50/60 Hz
 Power Consumption  135w
 Max. Negative Pressure  30 mbar
 Max. Airflow  180 m³/h
 Cabinet Construction  Powder Coated Mild Steel
 Weight  10 kg
 Duct Size  50 mm
 Max. Duct Run  5 meters
 Pre Filter Media & Efficiency

 Glass Fibre

 F7 - 96% @ 2 microns

 HEPA Filter Efficiency

 Glass Fibre

 99.997% @ 0.3 microns

 Sound Level  <61 dB(A) (at typical operating speed)
 Approvals  CE
