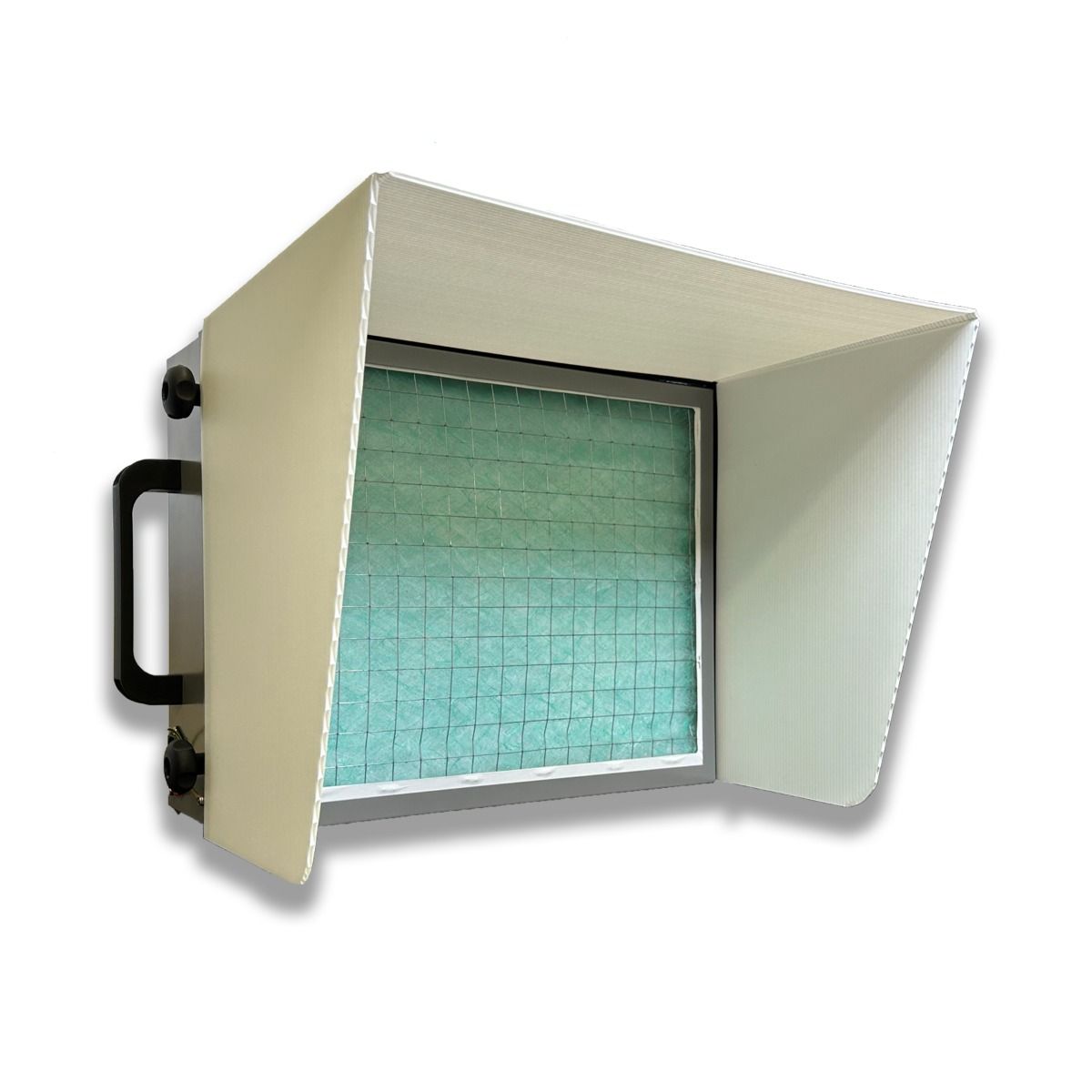

BenchVent BV300S Spray Booth
Part No. 01162
The BenchVent BV300S - benchtop spray booth solution for the filtration of Aerosol Adhesives, Aerosol Laquers, Fixatives, Airbrush Sprays and Spray Paints applied to artwork up to A3 in size. Can also be used to extract model aerosols and airbrush paints, cleaning solvents and light grinding particles.
Perfect for model making, small product development and home businesses. Suitable for a range of workshop applications.
This unit is designed for studio / workshop cleanliness and for immediate operator protection from concentrations of airborne contaminants.
They are not recommended for continual usage, i.e. production applications, particularly in confined and/or badly ventilated areas. See extraction cabinets BV200H-D and BV100H-D for total solvent odour and gas extraction, or BV660H-C or BV930H-C filtration cabinets for higher specification filtration.
The BenchVent BV300S help contain contaminant particles and harmful fumes from a number of different craft, hobby and education processes such as spray paints, airbursh paints, solvent fumes, aerosols, solder fumes and light grinding particles & dusts. Creating a cleaner, healthier working environment within art, graphics, hobbies, modelling and crafts.
The BV300S can be used for objects up to the dimensions of A3 in size (420 x 297 mm). The robust steel construction in finished in dove grey with a plastic replaceable spray/fume shield adn a number of different features including:
- Back Stand
- Carry Handle
- Particulater Filter
- Carbon Impregnated Fibre Filter
- Axial Fan (230v / 50Hz / 40W - 320m³/h)
- External, Brushless type rotor motor
- UL, VDE & CSA approved
- Sealed electrical wiring and switch, downstram of filters
|The BV300S can be used in two positions:|
|Reclining position (on back-stand) – For Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. BV300S accommodates artwork up to A3.|
|Upright position – For model sprays and airbrush use – light grinding particles – solder fume displacement – general solvent dilution etc. onto the hood base for spraying, cleaning, sanding etc.|
Click Here to see the Popular Ducted Version of this model
Service & Support For
Dust & Fume ExtractionFind out more
|Dimensions (L x D x H)||510 x 385 x350 mm|
|Fan Motor Spec.||
230V 50 Hz, 40 W
110V 60 Hz, 45 W
|Air Volume at Free Air||325 m³/hr|
|Avg. Air Velocity at Filter Face||0.5 m/sec|
|Avg. Air Velocity at Hood Face||0.32 m/sec|
|Noise Level||59 dB(A)|
|Filters||Particulate Filter - IFA3|
|Charcoal Filter - CHA3|
|Filter Kit (Including 3 x Particulate Filter & 1 x Charcoal Filter) - FKA3|
