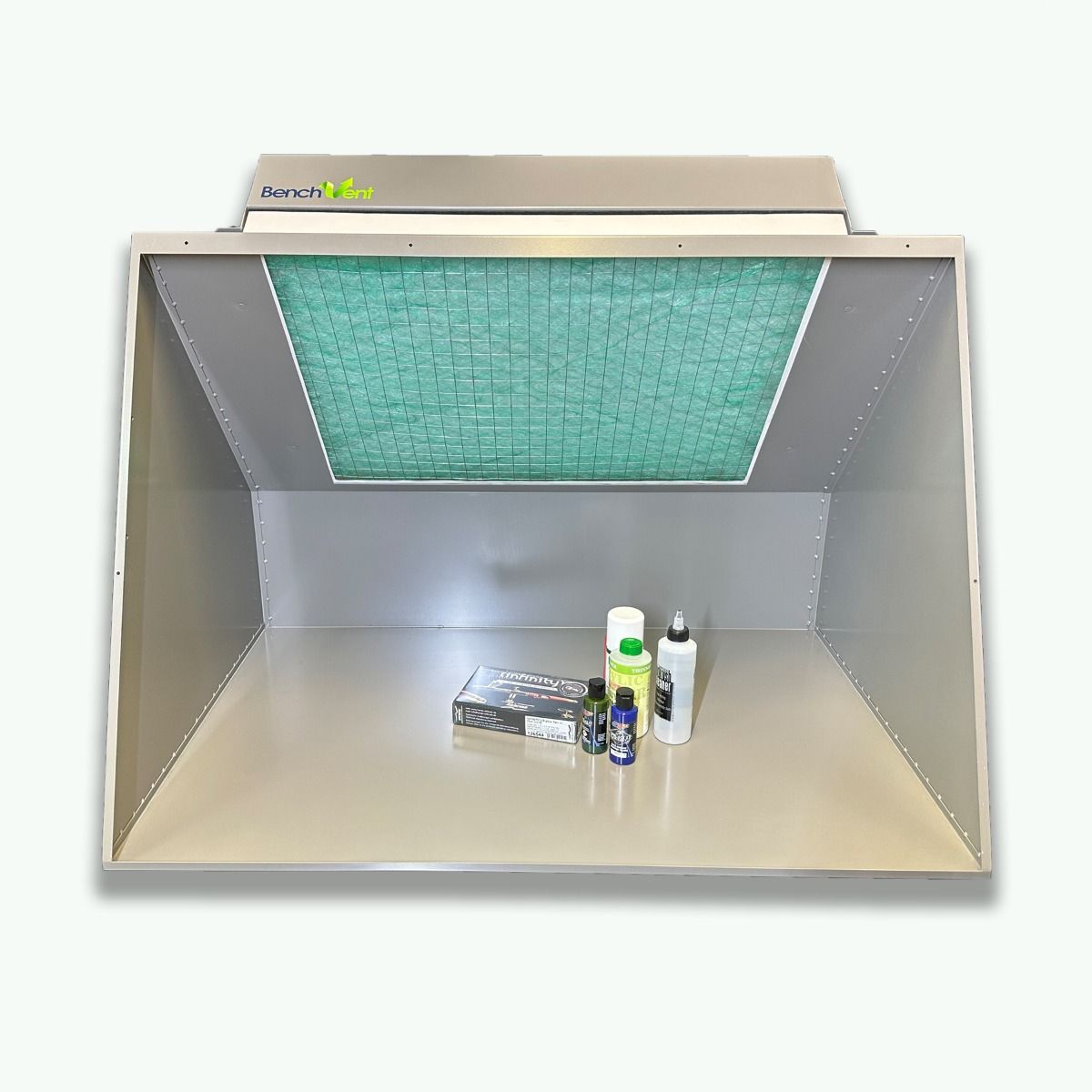

BenchVent BV100H Hooded Spray Booth

Part Nos. 01165-BV100H, CHA2, FKA2, IFA2P

The BenchVent BV100H - benchtop spray booth solution for the filtration of Aerosol Adhesives, Aerosol Laquers, Fixatives, Airbrush Sprays and Spray Paints applied to artwork up to A1 in size.

Can also be used to extract model aerosols and airbrush paints, cleaning solvents and light sanding/grinding particles.

Hobbyist: This unit is designed for studio / workshop cleanliness and for immediate operator protection from concentrations of airborne contaminants.
They are not recommended for continual usage, i.e. production applications, particularly in confined and/or badly ventilated areas. See extraction cabinets BV200H-D and BV100H-D for total solvent odour and gas extraction, or BV660H-C or BV930H-C filtration cabinets for higher specification filtration

Note : this unit comes complete with a full set of filters.

Estimated lead time 3 - 4 weeks
£10
Shipping outside UK - Contact us

In stock Estimated lead time 3 - 4 weeks

£1,198.80 £999.00
£1,198.80 £999.00
BenchVent
BenchVent
BenchVent are dedicated to providing reliable, high quality and cost-effective fume & dust extraction equipment. All products are designed to ensure that you can operate in a cleaner & healthier working environment.

Product Details

The BenchVent BV100H helps contain contaminant particles and harmful fumes from a number of different craft, hobby and education processes such as Aerosol adhesives (glue booth for Spray Mount), aerosol lacquers and fixatives and airbrush sprays applied to artwork up to A1 in size. Creating a cleaner, healthier working environment within art, graphics, hobbies, modelling and crafts. There is also an option for placing drawing boards within the hood of the spray booth at an angle for efficient over-spray capture. The workstation hood also accommodated prototypes, models, ceramic parts, PCB's etc, placed onto the base of the hood to be sprayed, soldered, cleaned glued, moulded or sanded etc.

The BV100H can be used for objects up to the dimensions of A1 in size (841 x 594 mm). The robust steel construction in finished in dove grey with a fan/filter unit mounted onto the hood enclosure and a number of different features including:

  • Particulate Filter
  • Carbon Impregnated Fibre Filter
  • 2 x Axial Fans (230v / 50Hz / 80W - 650m³/h)
  • External, Brushless type motor
  • UL, VDE & CSA approved
  • Sealed electrical wiring and switch, downstream of filters

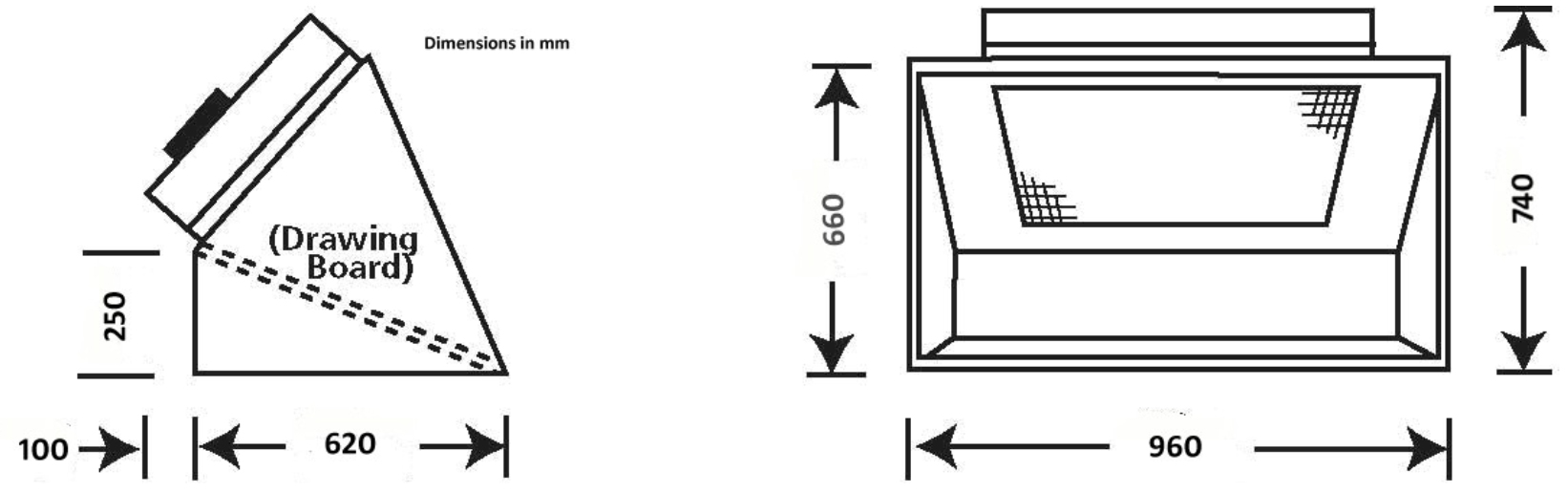

The BV100H Dimensions






Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

BenchVent BV100H Hooded Spray Booth
  Model    BV100H
  Dimensions (Overall)  960 x 740 x 720 mm
  Dimensions (Internal)  960 x 660 x 620 mm
  Fan Motor

  230V 50Hz 80W

  110V 50Hz 80W

  Air Volume at Free Air  650 m³/hr
  Avg. Air Velocity at Filter Face    0.5 m/sec
  Avg. Air Velocity at Hood Face 0.25 m/sec
  Noise Level  59 dB(A)
  Filters  Particulate Filter - IFA2
  Charcoal Filter - CHA2
  Filter Kit (Includes 3 x Particulate Filter & 1 x Charcoal Filter) - FKA2
