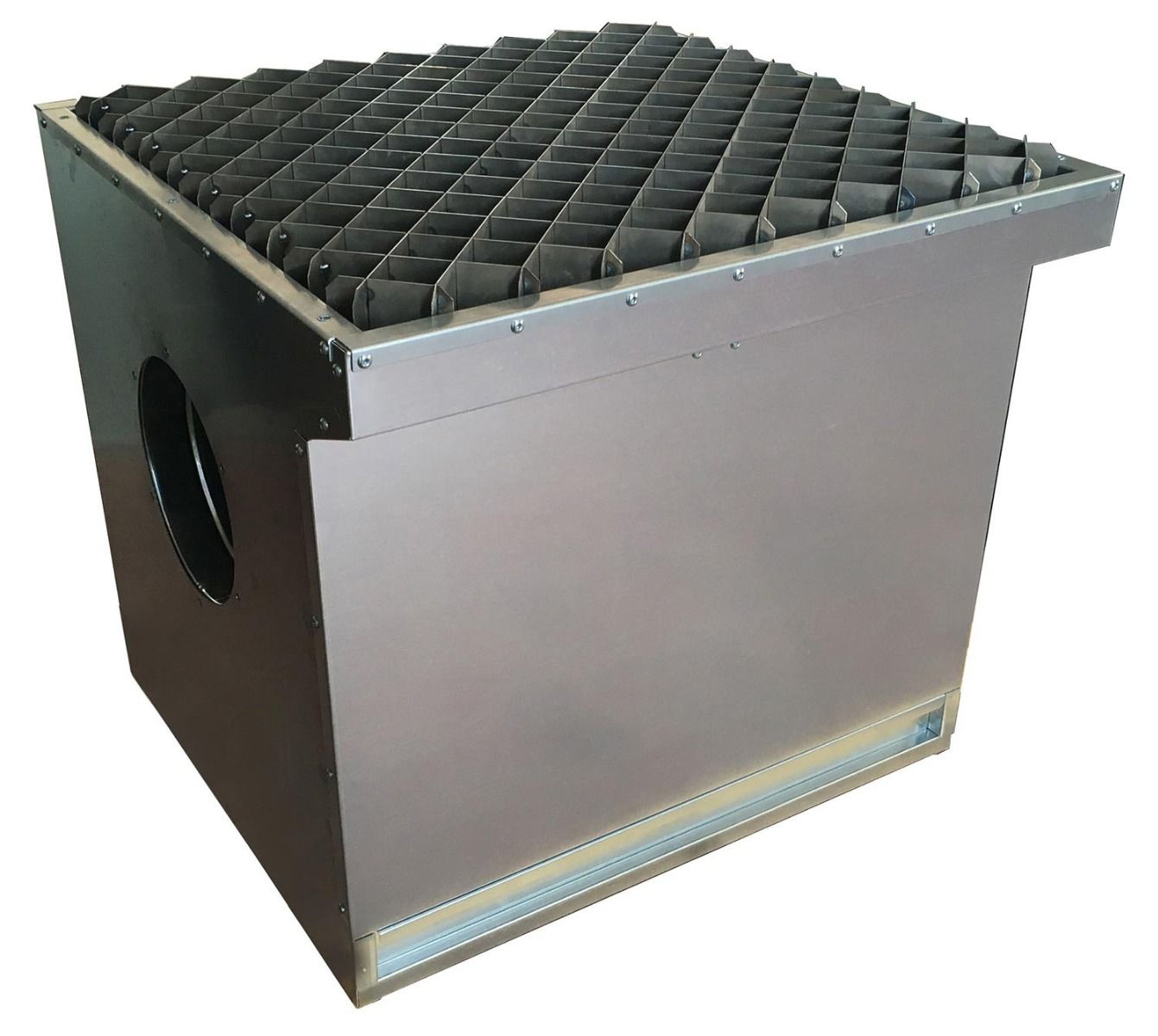

AES Plasma Downdraught Bench
Part No. AES Plasma Downdraught Bench
The AES series of plasma cutting downdraft benches are supplied without fan or filters and are fitted with a specific plasma cutting work surface for connection via Ø300mm outlet to a centralised extraction system or a separate fan/filter unit.
The benches are available in 4 lengths with a maximum load bearing of 150 kg/m2 (upgradeable) and include a drawer to collect heavier particles.
£0
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
Features and options
- Dust collection drawer
- Side and read panels (optional)
- Plasma cutting work surface
- Adjustable feet
- Outlet Ø300mm
- Vice base preparation (additional option)
- Castors (optional)
- Desk upgrade to 250 kg/m2
Spare Parts
Purchasing spares,
made easy.
Technical Specification
AES Plasma Downdraught Bench
| Model | GEB 10 | GEB 15 | GEB 20 | GEB 30 |
| Pressure drop (Pa) | 100 | 100 | 100 | 100 |
| Dimensions (A x B x H) (mm) | 930 x 900 x 1400 | 1430 x 900 x 1400 | 1930 x 900 x 1400 | 2820 x 900 x 1400 |
| Worktop (a x b x h) (mm) | 870 x 715 x 920/960 | 1370 x 715 x 920/960 | 1870 x 715 x 920/960 | 2760 x 715 x 920/960 |
| Outlet (Ø) | 300 | 300 | 300 | 300 |
| Maximum load (kg/m2) | 150 | 150 | 150 | 150 |
| Suggested airflow (m3/h) | 2000 | 2700 | 3300 | 4800 |
| Suitable filter for standard applications |
FEC APT FEC NV DCA GWF |
FEC APT FEC NV DCA GWF |
FEC APT FEC NV DCA GWF |
FEC NV DCA GWF |
| Suitable filter for plasma cutting for 1 bench |
FEC 4 NV | FEC 6 NV | FEC 6 NV | FEC 8 NV |
