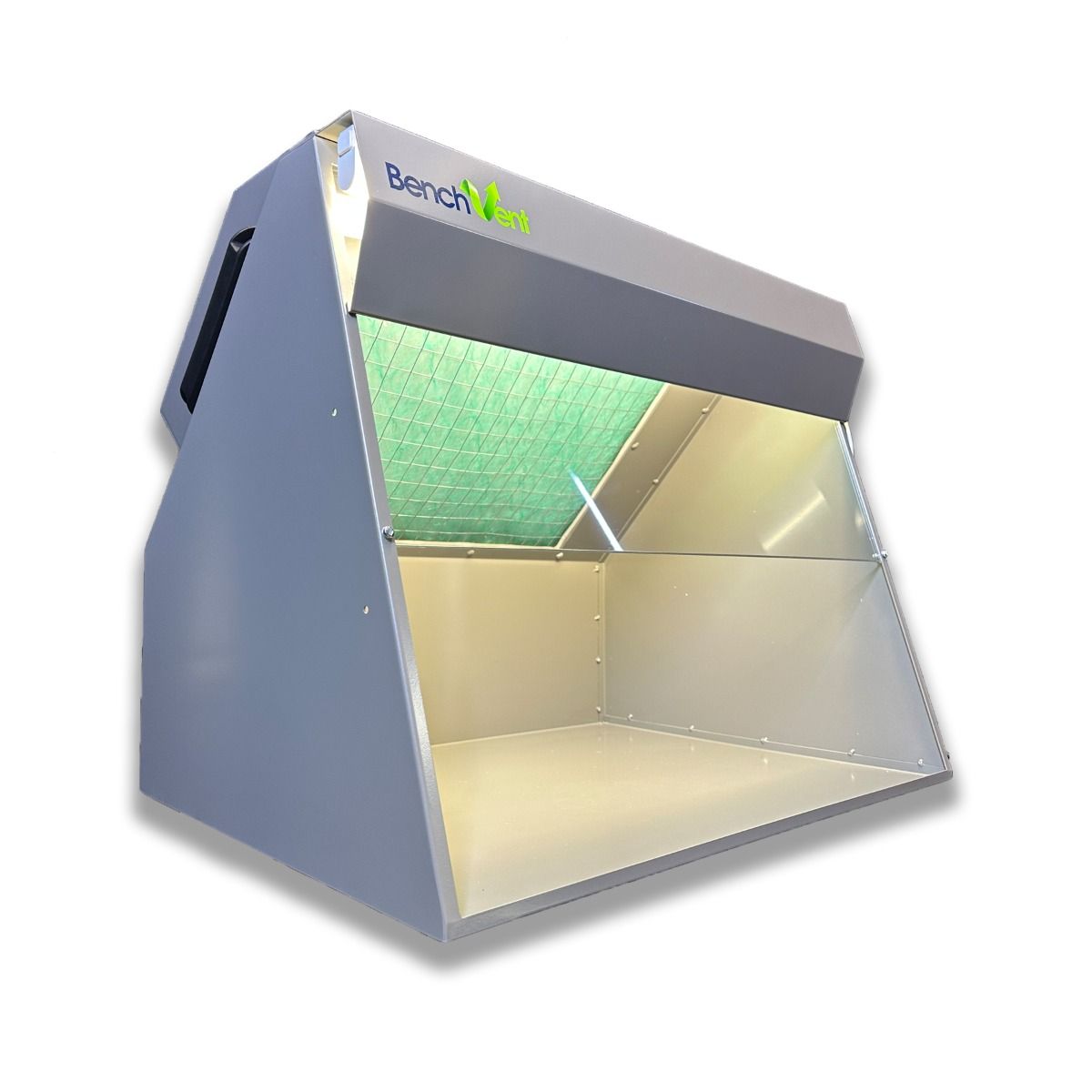

BenchVent BV660H-C Benchtop Filtration Cabinet
Part No. 01171
The BenchVent BV660H-C - The flagship benchtop extraction cabinet from BencVent that is a high efficiency and powerful solution that provides the safe capture, containment and filtration of harmful substances and contaminants from environments such as electronic design and rework, dental/ medical labs, pharmaceutical labs, design, technology and within the classroom or school laboratory. The BV660H-C is also commonly used within educational establishments for craft & design and science.
Product Details
The BenchVent BV660H-C is used to Contain and filter for a cleaner, healthier working environment within dental labs, electronic design and rework, pharmaceutical labs, design and technology, science in education and more. For use in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary.
The BV660H-C allows the handling and / or use of potentially harmful substances to be carried out within the hooded enclosure, and in front of the intake filtration area of the cabinet. The fans are then able to extract the harmful contaminant through the filter area, and the clean air is vented to the top and rear of the unit. Another useful feature of the 660H-C is for artwork applications, where an A2 size board can be placed within the hood enclosure, the boards can be fitted at an angle for efficient over-spray capture. Optional UV light can be fitted for PCB inspection.
Included
- Filter unit with fan
- Hood Enclosure
- Hood Light
- Polycarbonate hinged front panel
- 1 x Particulate Filter
- 1 x Activated Carbon Filter
- Power Lead - Sealed electrical wiring and switch, downstream of filters
- UL, VDE and CSA approved
- Data/Warranty Booklet
BenchVent BV660H-C Dimensions |
Filtration
The particulate (intake) filter is a three stage graduated fibre filter (filtration to 5.0 micron particles) with a high ‘dust’ holding capacity for long life. (Optional EPA filters available to approx 0.3micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Dimensions (Overall) | 680 x 450 x 600 mm |
Dimensions (Internal) | 670 x 450 x 525 mm |
Weight | 56 kg |
Air Volume at Free Air | 355 m³/h |
Avg. Air Velocity at Filter Face | 0.55 m/sec |
Avg. Air Velocity at Shield Face | 0.50 m/sec |
Fan Motor Spec. | 230V, 50Hz, 105W |
Noise Level LAeq | 60 dB(A) |
Filters |
Particle Filter - IFA3 |
Carbon Filter - AC200 | |
EPA Filter (Optional) - HE495 |
