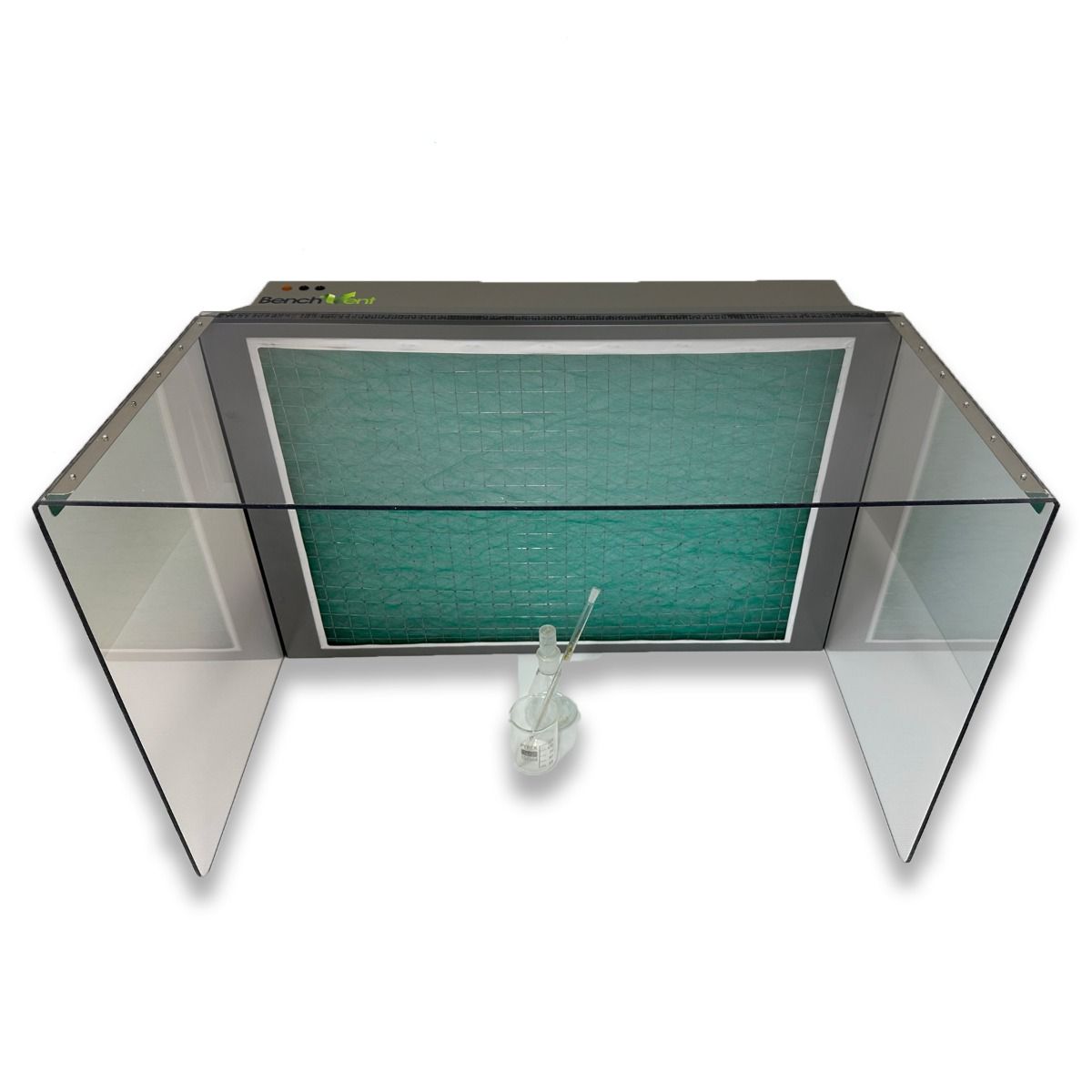

BenchVent BV700S-C Benchtop Filtration Cabinet

Part Nos. 01170-BV700S-C, AC100, HE705, IFA2, IFA2P

The BenchVent BV700S-C - A high performance, high quality filter cabinet with dual speed high-efficiency filtration and an acrylic capture shield to contain, filter and clean the air for a healthier working environment. Popular in operation for dental labs, electronic design & rework, pharmaceutical labs and design & technology environments. The BV700S-C is also commonly used within educational establishments for craft & design and science.

Estimated lead time 3 - 4 weeks
Shipping outside UK - Contact us
Estimated lead time 3 - 4 weeks
£2,316.00 £1,930.00
£2,316.00 £1,930.00
BenchVent are dedicated to providing reliable, high quality and cost-effective fume & dust extraction equipment. All products are designed to ensure that you can operate in a cleaner & healthier working environment.

Product Details

The BenchVent BV700S-C is used to Contain and filter for a cleaner, healthier working environment within dental labs, electronic design and rework, pharmaceutical labs, design and technology, science in education and more. For use in numerous situations where external venting is impractical but where contaminant capture and filtration is necessary.

Used for the filtration from monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc.The folding PETG shield can be stored if not required thus reducing the unit footprint considerably. Handling and / or use of potentially harmful substances is carried out in front of the intake filter area. The cleaned air is vented to the top rear of the units.


  • Filter unit with fan(s)
  • (PETG) Acrylic Spray Sheild
  • Particulate Filter
  • 1 x Activated Carbon Filter
  • Dual speed control
  • Power Lead - Sealed electrical wiring and switch, downstream of filters
  • UL, VDE and CSA approved
  • Data/Warranty Booklet
  BenchVent BV700S-C Dimensions


The particulate (intake) filter is a three stage graduated fibre filter (filtration to 5.0 micron particles) with a high ‘dust’ holding capacity for long life. (Optional EPA filters available to approx 0.3micron particles). This is followed by a high grade bonded carbon filter. Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced or eliminated

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

BenchVent BV700S-C Benchtop Filtration Cabinet
  Dimensions (Overall)  700 x 610 x 515 mm
  Weight  37 kg
  Air Volume at Free Air  710 m³/h
  Avg. Air Velocity at Filter Face    0.55 m/sec
  Avg. Air Velocity at Shield Face    0.50 m/sec
  Fan Motor Spec  230V, 50Hz, 210W
  Noise Level LAeq   62 dB(A)
  Filters   Particle Filter - IFA2
  Carbon Filter - AC100
  EPA Filter (Optional) - HE705
