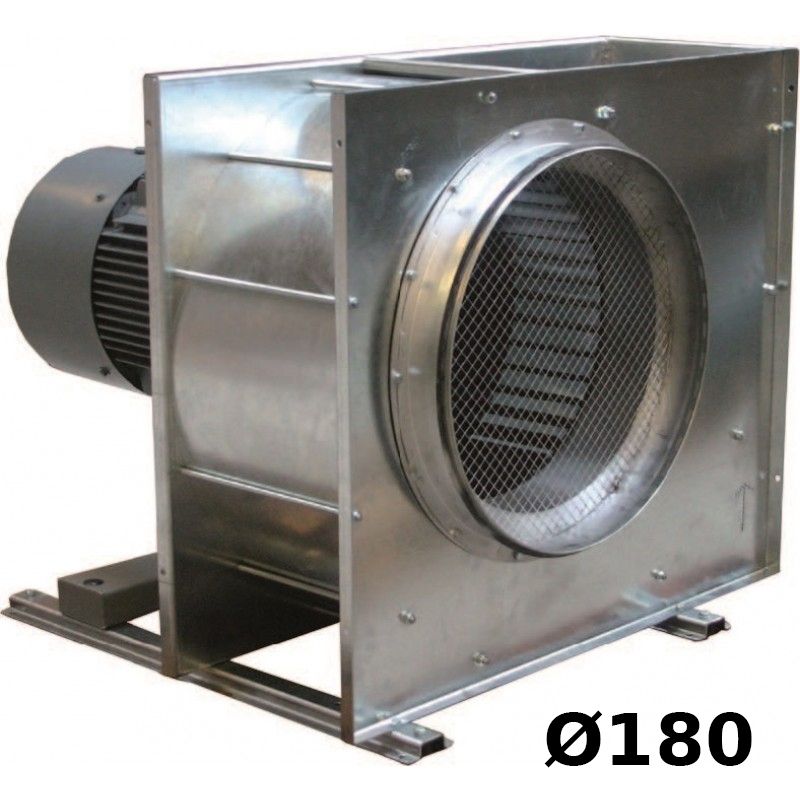

Geovent Ø180 MSFG/LSFG Centrifugal Fans

Part Nos. MSFG-LSFG-180-30-001, 30-002, 30-005, 30-006

Quick Overview

GEOVENT centrifugal fan (LSFG and MSFG) with forward curving impeller is used for extraction in workplace environments.

LSFG Fans run at 1400 RPM

MSFG Fans run at 2800 RPM

Delivery cost: £65

Availability: 7-10 Days

£405.48 Excl. VAT £486.58 Inc. VAT
£405.48 Excl. VAT £486.58 Inc. VAT

Product Details

The MSFG/LSGH centrifugal fan is available with a wheel diameter of Ø180, made from 100% galvanised steel which offers optimum corrosion resistance. This allows the fan to be installed in an outdoor environment, e.g. on a roof or wall.

As standard the fan is supplied with supporting angles with vibration support absorbers and an inlet nozzle with net and clamp for mounting the outlet flange

A number of optional extras are available for order with the fan.

 Fan Model    Max AirFlow m3/h    Power (kW)    Current (A)    Pressure (pa)
  LSFG-180-3    1175    0.25    0.84    230
  MSFG-180-3    1670    0.55    1.42    950
  LSFG-180-1    1175    0.25    1.9    230
  MSFG-180-1    1670    0.55    3.49    950
Show more

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more


Technical Specification

Geovent Ø180 MSFG/LSFG Centrifugal Fans
  • available with a wheel diameter of Ø180
