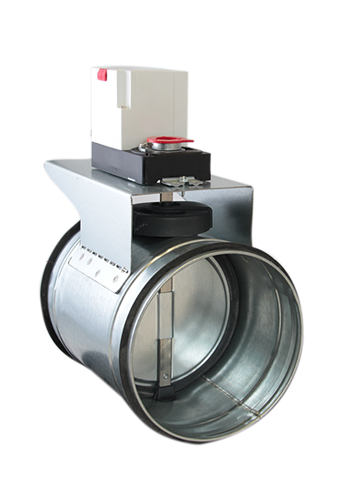

Geovent Motor Damper - 230
Part No. 61-091, 61-092, 61-093, 61-094, 61-095, 61-096
The Geovent Motordamper-230 is specially designed for use in point extraction systems that require opening and closing of the dampers by suction points. Geovent Motordamper-230 is a tight damper that can open 90° in 35 seconds.
This damper is available with ON/OFF or modulating motor for accurate control of the air. The damper is available from ø80 mm to ø400 mm.
Delivery normally within 3 weeks
£65
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£441.60 £368.00
Geovent
Geovent specialise in the supply of dust and fume extraction systems as well as industrial ventilation and local exhaust ventilation in automotive workshops.
There is a huge range of products to choose from, and Geovent are constantly innovating to provide the best solutions for the market.
Product Details
The GFD damper with its quick opening and closing option is designed for use with spot extraction applications. It is adjustable in steps from 1 to 5 seconds (315, 400, or 500 mm). The damper can be delivered with a modulating motor for use in laboratory applications.
The damper is delivered in dimensions from ø80 mm to ø500 mm.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Geovent Motor Damper - 230
| Power Supply | AC 100 240 V |
| Power Consumption | 2 W @ nom. Torque 0.4 W @ Idle |
| Wire Dimensions | 4 VA |
| Connection | Cable, 1 m |
| Torque | Min 5 Nm |
| Angle of Rotation | 90° |
| EMC - Emission | CE acc. to 89/336/EEC |
| LVD | CE acc. to 73/23/EEC |
| Ambient Temperature | 0 - 50° C |
| Protection Class | IP 54 |
| Sound Power Level | Max. 45 dB(A) |
