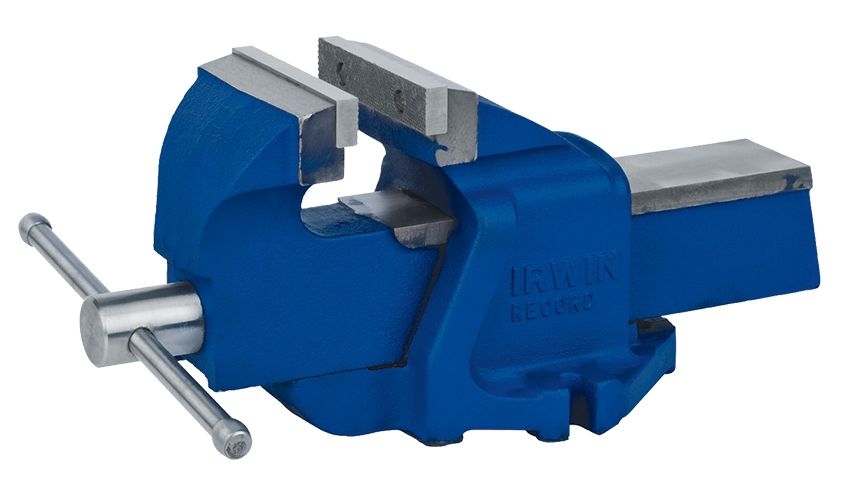

Irwin Record Mechanics Vices
Part No. 01423
Irwin Record Mechanics Vices come in a range of sizes and made of high quality cast iron.
£10
Shipping outside UK - Contact us
Estimated lead time - 3 weeks
POA
£0.00 £0.00
Product Details
Rigid and robust, the body and sliding jaw are cast from close grained grey iron which is machined on all friction surfaces for a smooth reliable action. The jaws, handle and main screw are steel, the latter having a two-start rolled acme thread to speed the jaws from fully closed to fully open with a minimum of winding.
Available in 6 Sizes
Features :
- • Replaceable hardened steel jaws
- Fused steel handle bends before vice can be overstressed
- Machined steel mainscrew with rolled two-start acme thread for wear-resistance and smooth operation
- Fully machined load bearing surfaces
- Internal sg nut takes load, secures and aligns mainscrew. Can be replaced when worn, saving cost of replacement of whole vice body.
- Safety stop prevents slide from accidentally seperating from body.
- Lip on back body guides filings and fragments away from the silide.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Irwin Record Mechanics Vices
Available Sizes :
- 3" (76mm)
- 4" (102mm)
- 4.5" (114mm)
- 5" (127mm)
- 6" (152mm)
- 8" (203mm)
