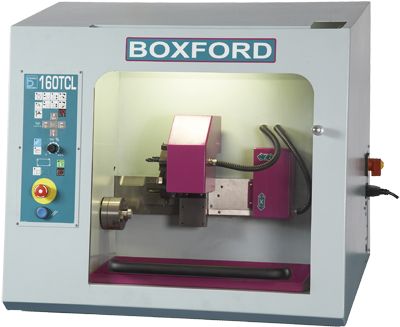

Boxford 160TCLi CNC Lathe
Part No. 160TCLi
The Boxford 160TCLi is a fully enclosed top PC controlled CNC lathe with 160 mm swing over bed, spindle bored to pass Ø20 mm, Ø80 mm precision 3-jaw self centering chuck and precision dovetail slide construction.
£65
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
Features
- USB interface
- Integrated touch sensitive control panel with illuminated push buttons to allow manual machining
- Pre-loaded anti-backlash ball screws on all axes
- Single seat of Boxford "CAD/CAM Design Tools" software (incorporating integrated LatheCAD design software and automatic design processing to a machining routine including solid 3D graphics simulation. Also includes conversational and manual programming, ideal for vocational training. Optional site/network license upgrade)
Optional accessories
- Comprehensive tooling set
- 8 station automatic disc turret
- Quick change tool post
- Automatic pneumatic chuck
- Manual tailstock steady
- Automatic pneumatic tailstock quill
- Portable cabinet base
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Boxford 160TCLi CNC Lathe
Max. Dimensions (L x W x H) | 600 x 800 x 1025 mm |
Swing over bed | 160 mm |
Swing over x axes slide | 70 mm |
X axis travel (cross) | 125 mm |
Z axis travel (longditudonal) | 125 mm |
Chuck diameter | 80 mm |
Spindle bored to pass | 20 mm |
Distance between centres | 140 mm |
Tailstock quill travel | 75 mm |
Spindle motor | 750 watts |
Infinitely variable spindle speeds | 200-3200 rpm |
Electrics | 110/220/240 V - 1 phase |
Programmable feed | 0-1500 mm/min |
Rapid feed rate at 100 % | 1500 mm/min |
Machine weight | 130 kg |
