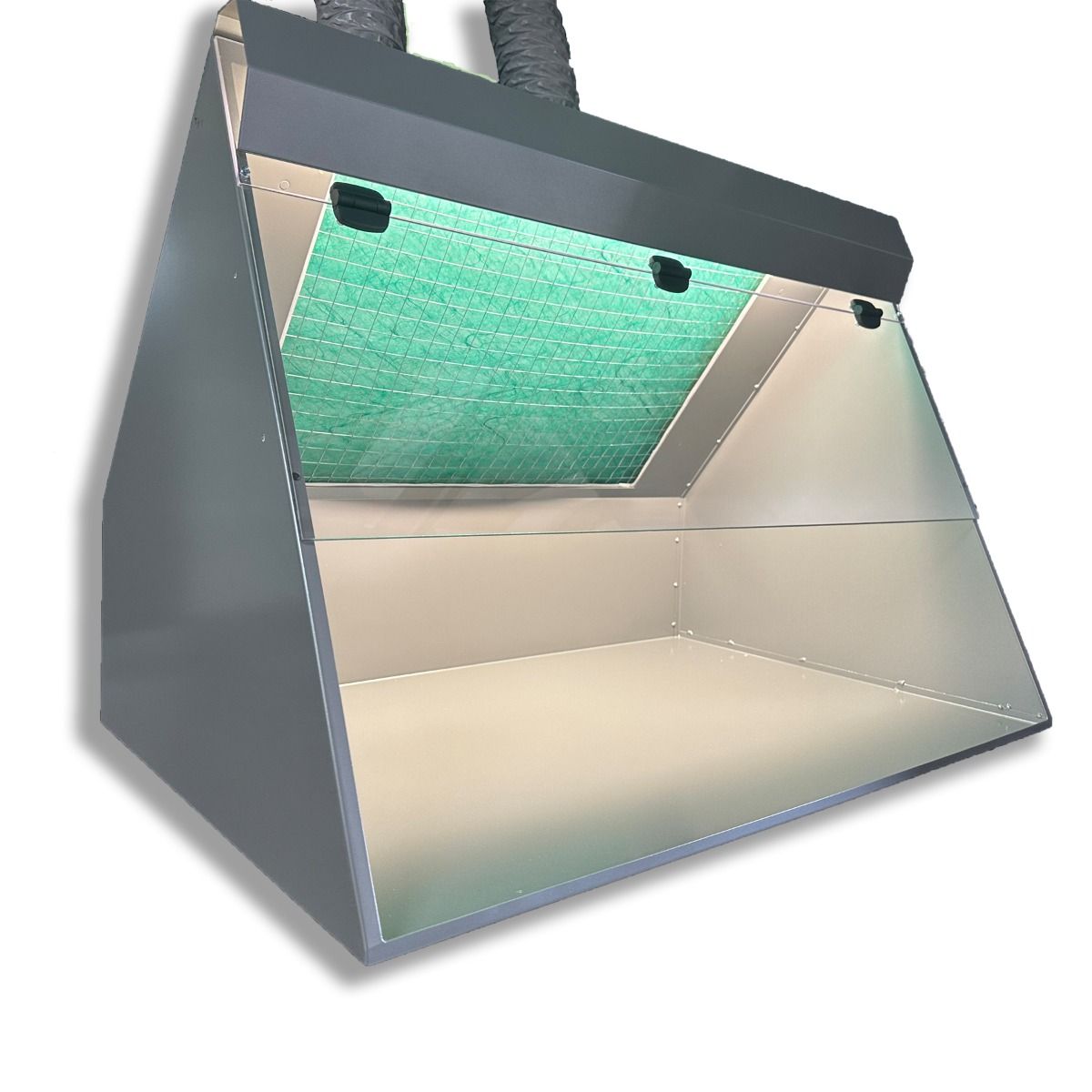

BenchVent BV930H-D Ducted Filtration Cabinet
Part No. 01176
The BenchVent BV930H-D, a powerful and effective filtration cabinet which captures, contains and filters harmful substances from dental/medical labs, electronics design and rework, pharmaceutical labs, design and technology, science in education and many more.
Product Details
The BV930H-D can be used to extract spray adhesives, conformal coatings, and paints, monomers, hazardous powders, resins, sealant, solders, light grinding particles and organic solvents / cleaners. All odors and gases are extracted to atmosphere.
The large hood mounted extract-to-atmosphere cabinet, allows the user to capture, contain, filter and expel within electronic design and rework, dental/medical labs, pharmaceutical labs, design, technology and classroom areas. All handling and/or use of potentially harmful substances is carried out within the hood enclosure in front of the intake filter area. For artwork applications, standard A1 drawing boards can be placed within the hood enclosure. The boards fit at an angle for efficient overspray capture.
Included
- Filter unit with fan(s) (230V, 50Hz, 210W)
- Hood Enclosure
- Hood Light
- Polycarbonate hinged front panel
- 1 x Particulate Filter
- Power Lead - Sealed electrical wiring and switch, downstream of filters
- UL, VDE and CSA approved
- Data/Warranty Booklet
- Flexi duct - 2 metres x ø100mm dia.

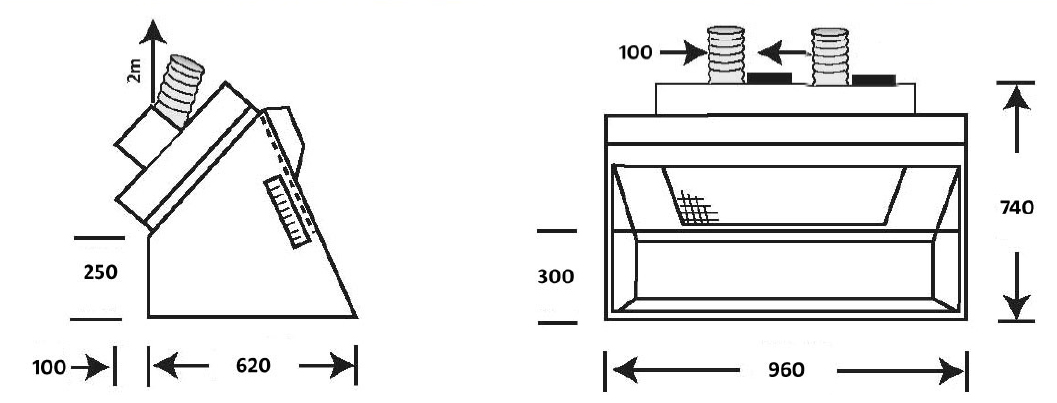

BenchVent BV930H-C Dimensions |
Filtration
The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns. The dual process of filtration and then extraction to atmosphere via flexi-ducts, vastly reduces and/or eliminates operator exposures to potentially hazardous substances.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Dimensions (Overall) | 960 x 720 x 740 mm |
Dimensions (Internal) | 960 x 620 x 660 mm |
Weight | 125 kg |
Air Volume at Free Air | 710 m³/h |
Avg. Air Velocity at Filter Face | 0.60 m/sec |
Avg. Air Velocity at Shield Face | 0.55 m/sec |
Fan Motor Spec | 230 V 50 Hz, 210 W |
Noise Level LAeq | 60 dB(A) |
Filters | Standard Particle Filter - IFA2P |
