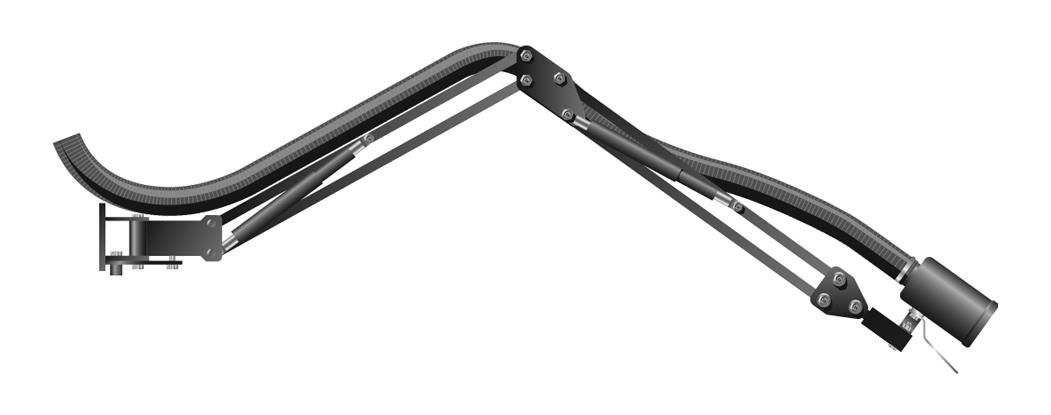

Nederman Balance Arm
Part No. 40180000, 40180010, 40180020
The Nederman Balance Arm is ergonomic, space saving and provides full suction for hard-to-reach areas.
- Economic and safe
- Well balanced and flexible
- Easy to operate
- Universal
The arms can be equipped with all suction nozzles within the Nederman High Vacuum range. Mounting bracket, nozzle (CWN-S or FWN), handle and hose (FS or WH hose) must be ordered seperately.
Product Details
In order to gain maximum accessability, the balance extraction arm is built up with two gas damper balanced sections. The extractor has three swivel points, one at the base, one at the middle and one at the point where the nozzle is attached. The nozzle can therefore be moved to any chosen position within the reach of the balance arm.
The arms can be equipped with all suction nozzles within the Nederman High Vacuum programme. The friction for sideways movement is adjustable. The balance arm can be mounted in three different ways: to a wall, to a work bench or to an extension arm.
Mounting bracket, nozzle (CWN-S or FWN), handle and hose (FS or WH hose) must be ordered seperately.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Model | Arm Length (m) | Weight (kg) |
BA150 Balance Arm | 1.5 | 9.7 |
BA250 Balance Arm | 2.5 | 16.5 |
BA350 Balance Arm | 3.5 | 19.2 |
