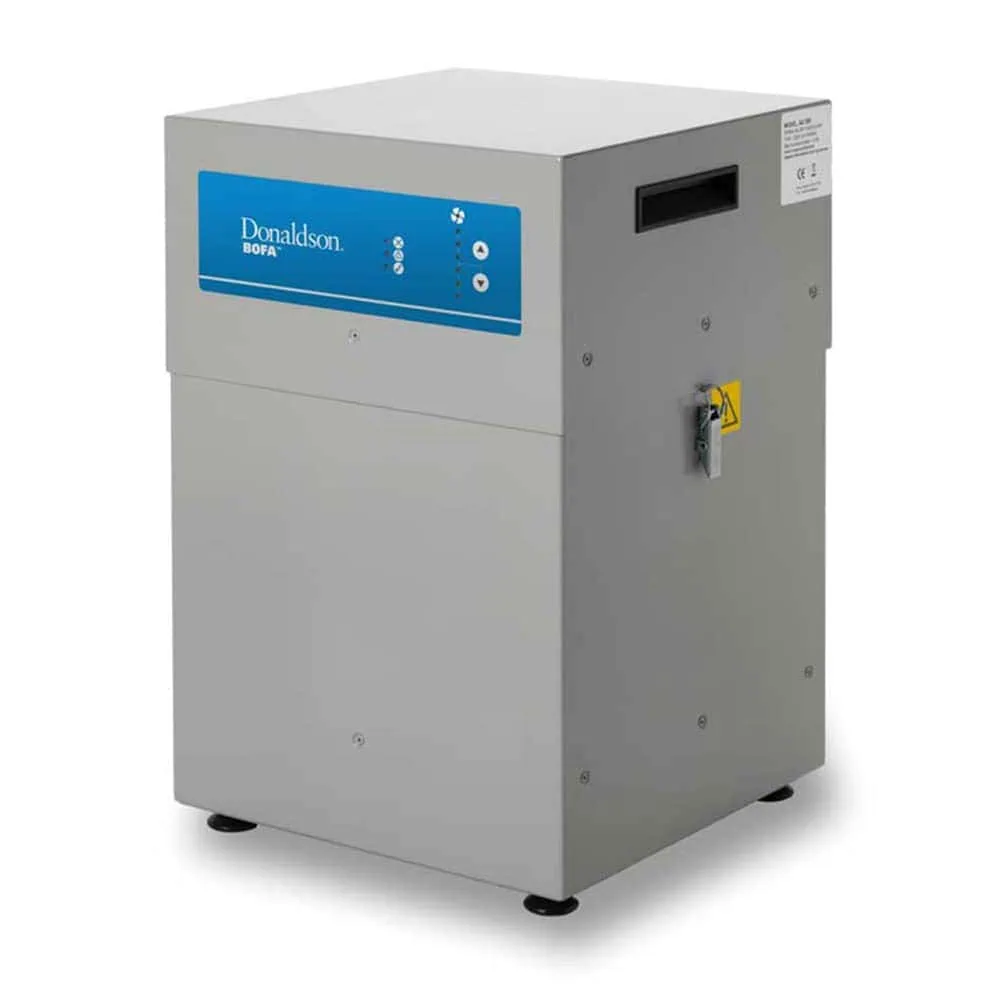

Bofa AD 350 Laser Fume Extraction Unit

Part No. 1U30761008-1238

Bofa AD350 Fume extraction system for light-duty laser marking, coding and engraving applications.

BOFA’s Advantage 350 fume extraction and 3 stage filtration system helps to filter fumes and particulates created during laser marking processes.

The quiet and compact Advantage 350 is ideal for use in light-duty laser marking applications, including schools, sign making workshops and small scale industrial environments

Please see Product Details below for factory fit option details.

Delivery normally within 4 weeks
£40
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£1,744.80 £1,454.00
£1,744.80 £1,454.00
Get in touchIs this the right product for you?Ask us a question
Bofa
Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications. BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.

Product Details

The Bofa AD 350 Laser Fume Extraction Unit is an extraction and filtration system that effectively removes potentially harmful fumes and particles created from multiple laser making processes. The Bofa AD 350 can be used for a number of lasering processes such as marking, welding, drilling, coding, engraving and cutting. The AD 350 helps create and maintain a dust-free operating area which in turn protects valuable equipment and components, maintains a higher laser precision and a higher quality mark and also reduces the number of rejects and contaminants in the process.



Features

  • Blower with high airflow and pressure
  • Low cost replacement filters
  • Filter condition indicator
  • Low noise levels
  • Digital flow control system



Factory Fit Options

  • 24V S/S - Remote stop/start signal ensures that your fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
  • SOK signal - alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.
  • O/R - Enables the extraction system to operate fully with or without either DC voltage input or the volt-free input

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

Bofa AD 350 Laser Fume Extraction Unit
  Dimensions (L x D x H)    375 x 375 x 590 mm
  Cabinet Construction    Brushed Stainless Steel / Powder coated mild steel
  Airflow / Pressure   380 m³/h / 30 mbar
  Electrical Data  115-230v 1ph 50/60 Hz
  Full Load Current  12.5 Amps / 1.1 kW
  Noise Level  < 60dBA*
  Weight  40 kg

* At typical operating speed

DeepPleat Pre Filter Specifications

  Surface media Area    6m² ~ Approx
  Filter Media    Glass Fibre
  Filter Media Construction    100mm DeepPleat Construction with Webbing Spacers
  Filter Efficiency    F8 (95% @ 0.9 microns)

Combined Filter Specifications

  HEPA Filter Media    Glass Fibre
  HEPA Media Construction    Maxi Fold Construction with Webbing Spacers
  Filter Housing  Zintec Mild Steel
  Treated Activated Carbon    9 kgs
  Filter Efficiency  99.997 % @ 0.3 microns Â
