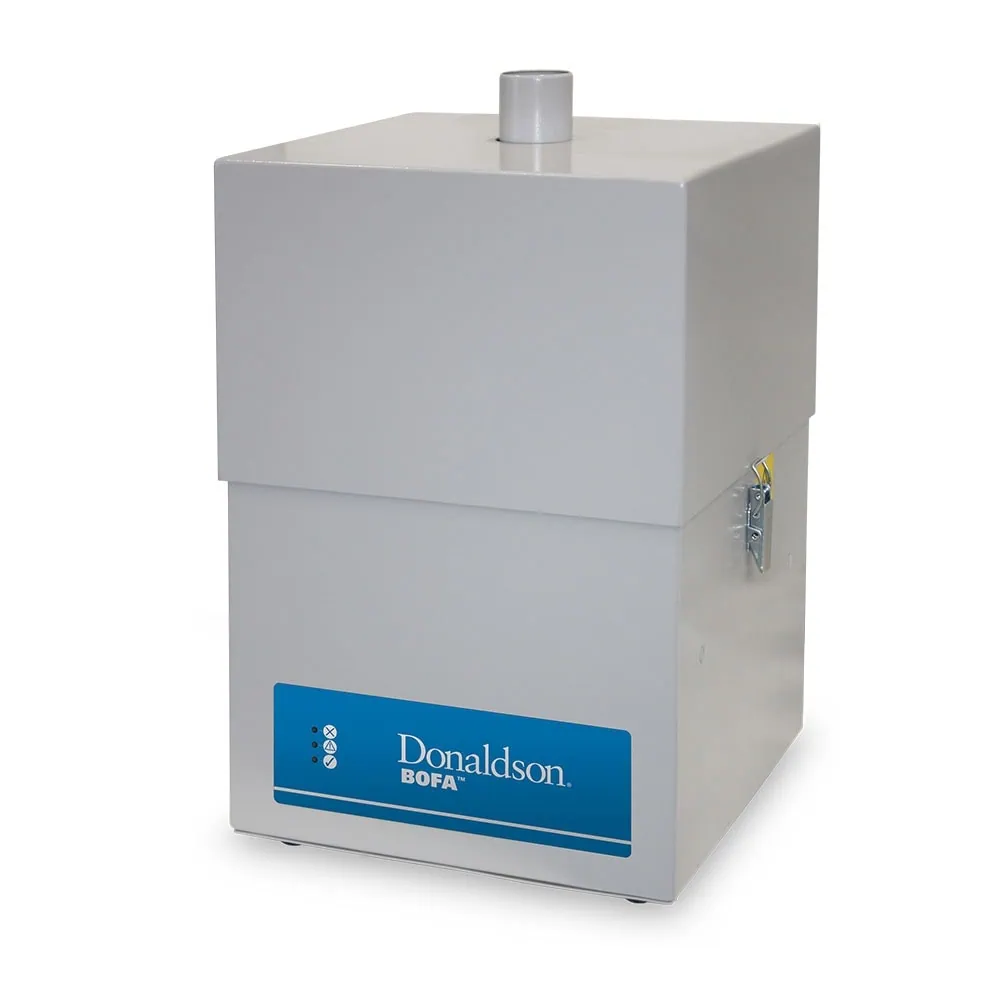

Bofa AD Access Laser Fume Extractor
Part No. 1U30761512-1313
The Bofa AD Access is a compact fume extraction system for light duty laser marking, coding and engraving applications. A three-stage filter condition indicator is included as a standard feature, together with three-stage filtration: DeepPleat pre-filter, HEPA and chemical section.
Please see Product Details below for factory fit option details.
Delivery normally within 4 weeks
£30
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£1,105.50 £921.25
Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications.
BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.
Product Details
The Bofa AD Access Laser Fume Extractor combines economic ownership with performance to match the small laser user. A three stage filter condition indicator is included as a standard feature, together with three stage filtration: DeepPleat pre filter, HEPA and chemical section. This compact unit gives entry level fume extraction ideal for light use and the user the ability to maintain safe operator working conditions and product quality.
Standard Features
- Filter condition indicator
- DeepPleat pre filter
- Advanced Carbon Filter technology
- Long life, low cost replacement filters
- Low noise levels
Factory Fit Options
- 24V S/S - Remote stop/start signal ensures that your fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
- SOK signal - alerts you when there is a fault, when filters are blocked, and when filters are approaching full capacity, allowing you to schedule maintenance efficiently.
- O/R - Enables the extraction system to operate fully with or without either DC voltage input or the volt-free input
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Bofa AD Access Laser Fume Extractor
| Dimensions (L x D x H) | 320 x 310 x 512 mm |
| Cabinet Construction | Brushed Stainless Steel / Powder coated mild steel |
| Airflow / Pressure | 180 m³/h / 30 mbar |
| Electrical Data | 115V or 230v 1ph 50/60 Hz |
| Full Load Current | 0.9 Amps |
| Noise Level | < 56dBA* |
| Weight | 21 kg |
| Approvals | CE |
* At typical operating speed
DeepPleat Pre Filter Specifications
| Surface media Area | 1.74m² ~ Approx |
| Filter Media | Glass Fibre |
| Filter Media Construction | 50mm Maxi Fold Construction with Webbing Spacers |
| Filter Efficiency | F8 (95% @ 0.9 microns) |
Combined Filter Specifications
| HEPA Filter Media | Glass Fibre |
| HEPA Media Construction | Maxi Fold Construction with Webbing Spacers |
| Filter Housing | Zintec Mild Steel |
| Treated Activated Carbon | 7 kgs ~ Approx |
| Filter Efficiency | 99.997 % @ 0.3 microns |
