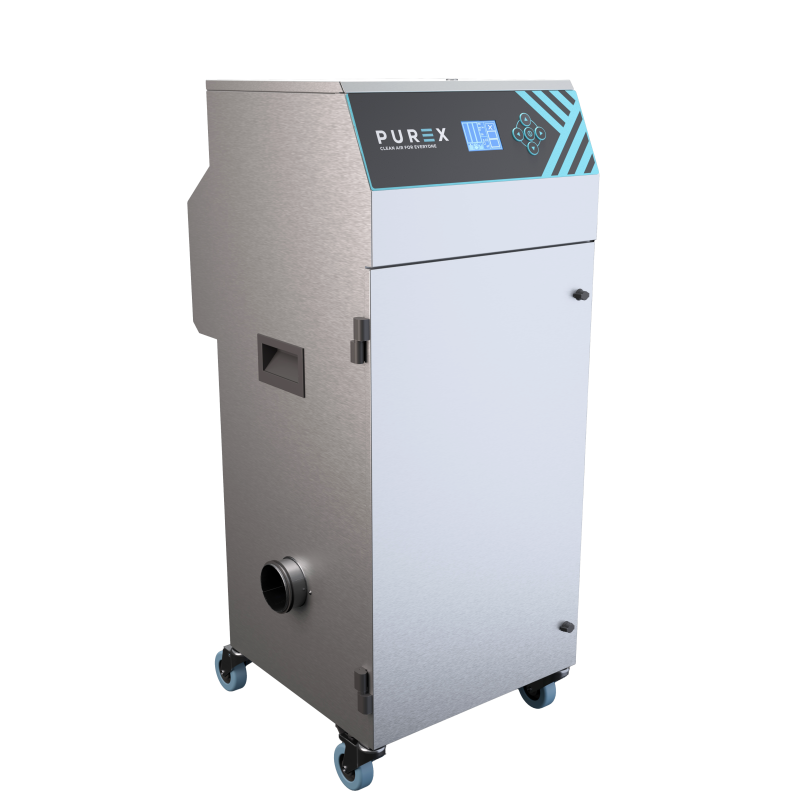

Purex 400i Digital Fume Extractor
Part Nos. 0LX4010D-0LX4010D, 0LX4013D, 080410iD, 080411iD
The Purex 400i digital fume extractor can be used by up to 30 tips or inkjet printers and laser machines.
There are 2 options available:
- Vacuum sensing – designed for tip and arm applications
- Volume sensing – designed for laser machines
This extraction unit is sufficient for removing the fumes of larger inkjet printers, coding and marking machines. Filters within the unit stop harmful particles and chemicals from reaching the operator. Features an airflow of 467m3/hr - produced by a 1.3kW motor.
The speed of the unit is fully controllable through the digital interface. The unit will also maintain an even flow automatically. As the filter blocks, the system will adjust to combat the saturation level.
120 volt version available upon request
Please select either Volume controlable or Vacuum controlable when purchasing the unit.
Product Details
Purex digital units give the user a full overview of the performance of their extraction unit. The readout located on the front panel of the machine shows the status of the filter, the airflow and the temperature the unit is operating at. This advanced information allows the operator to pre-emptively source and stock filters in order to keep production downtime to a minimum.
Supplied with :
- 2 x Pre-Filters
- 1 x HEPA/Carbon Main Filter
- Connection Hose Kit
- Power Cable

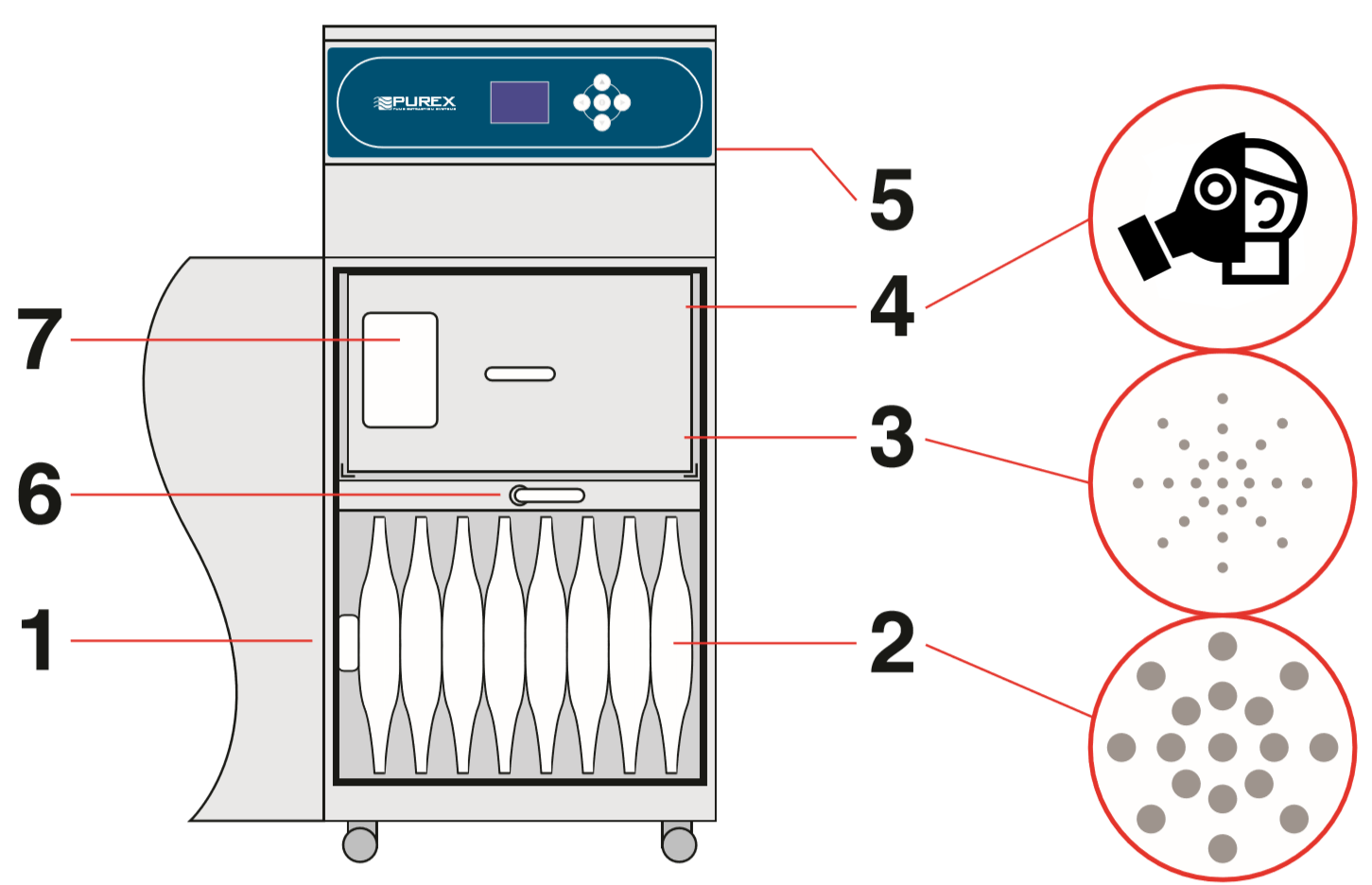

PUREX 400i LAYOUT
- 1) Air inlet - 80mm safe seal
- 2) Pre-filter
- 3) Main Filter (HEPA location)
- 4) Main Filter (Carbon location)
- 5) Clean air returned to workplace
- 6) Filter locking handle
- 7) Filter identification label
Spare Parts
Purchasing spares,
made easy.
Technical Specification
- Dimensions : 465 x 528 x 1070mm
- Weight : 60Kg
- Sound : <60 dB(a)
