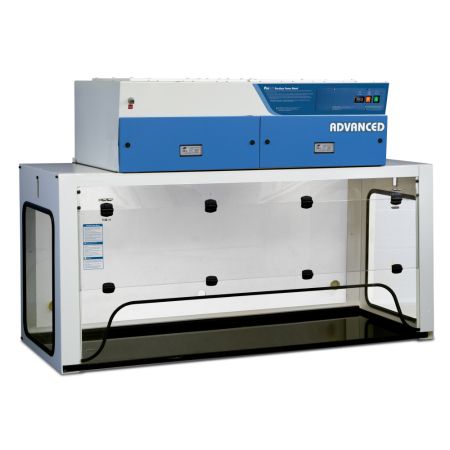

Purair P30-XT Advanced Fume Cabinet
Part No. P30
The Purair® Advanced Series ductless fume hoods are designed to protect both the user and the environment from dangerous substances that may be present in the workplace.
Suitable for use in professional laboratories and educational environments the Advanced range offer a host of features not available to the basic Purair fume hoods.
The P30 is available in two sizes, standard and XT (Extra Tall). Reference the datasheets below for more information.
Below you can select the model type and filter configuration to suit your requirements, you can also select the secondary filter if required and a spare replacement set of pre filters. Base stands are also available as an option in the section below.
The P30 offers many features that help protect operators and employees from harmful emissions such as:
- High operator protection to fume and particle
- Improved clamping eliminates bypass leakage.
- Low airflow alarm.
- Polypropylene work surface (stainless steel
- High capacity filters for more demanding
Using innovative filtration technology, the Purair Advanced creates a safe work environment over the widest range of applications in the industry, including; Compounding, Balance Enclosures, Microscopes and Robotic Equipment, Forensics, Histology, Educational, Microscopy, Mobile and Classroom Demonstrations, Pharmaceutical, Powder Fingerprinting, Powder Weighing, Sample Prep Work, Soldering, Solvent Cleaning and Welding, Veterinary and Dental.
Service & Support For
Dust & Fume ExtractionFind out more
|Internal Height||External (W x D x H)||Shipping (W x D x H)||Net||Ship|
|P30-XT||965 mm||1753 × 695 × 1346 mm||1016 × 2032 × 1067 mm||143 kg||181 kg|
|Face Velocity||0.5 m/s|
|Power Consumption²||67 watt|
|Noise, dBA³||< 56|
|Finish||White epoxy coated steel frame and head unit. Clear sides and back panel. Polypropylene spill tray.|
|Blower||ebm-papst EC blower.|
|Electrical||120V, 60Hz or 230V, 50Hz voltages available. Specify when ordering. Other voltage options available.|
|Monitoring||Low airflow alarm, standard.|
1) The Purair 30 Series is configured with two filter sections, standard. A three filter configuration (similar to
the Purair 40) is available to increase the airflow volume to 590 cfm; specify when ordering.
2) All measurements are with Filter Type ASTM-030.
3) Measured 12" (30 cm) from the cabinet front and 15" (38 cm) above the work surface plane.
