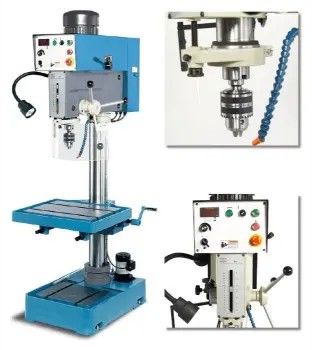

Promac BX-840VT-M Variable-Speed Drill Press
Part No. 20033481
The Promac BX-840VT-M Variable-Speed Drill Press is a direct replacement for the popular Baileigh DP-1250VS.
- Inverter driven
- MT4 spindle taper
- 40mm capacity
£175
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£6,360.00 £5,300.00
Product Details
The Promac BX-840VT-M Variable-Speed Drill Press is a direct replacement for the popular Baileigh DP-1250VS and has a wide column for extra support to reduce flexing during heavy drilling sessions at maximum capacity, at 40mm diameter mild steel.
This machine has a powerful inverter-driven head that is controlled through a speed potentiometer dial and digital read out for displaying actual quill RPM.
This variable speed drill press uses a heavy #4 morse taper to transfer the power from the spindle to the quill. To further the rigidity, the base and table are made of a heavy casting with very large T-slots to secure vice or material.
The base includes a powerful coolant system that is sprayed out at the quill behind a quality splash and safety guard.
This heavy-duty, variable speed, drill press is commonly in stock for quick shipments. It offers any machinist or fabricator a great value for the investment.
Shown with optional chuck & taper.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Promac BX-840VT-M Variable-Speed Drill Press
| Table Dimensions | 559 mm x 470 mm |
| Motor | 1.5 kw |
| Quill Diameter | 75 mm |
| Spindle Nose to Table | 850 mm |
| Spindle Nose to Base | 1180 mm |
| Spindle Speed High | 245 - 2000 rpm |
| Spindle Speed Low | 65 - 540 rpm |
| Spindle Taper | MT 4 |
| Table Slot | 16 mm |
| Tapping Capacity | 19 mm |
| Motor Coolant | 0.125 kw |
| Power | 220V / 1-phase |
| Shipping Weight | 340 kg |
| Swing | 5158 |
| Drill Capacity | 40 mm |
| Spindle Travel | 5157 |
| Column Diameter | 5152 |
| Base Dimensions | L x W 685 mm x 485 mm |
| Shipping Dimensions | 620 x 940 x 1870 mm |
