Promac BX-830VT-M Variable Speed Drill Press
Part No. 2001738A
The Promac BX-830VT-M Variable Speed Drill Press is a direct replacement for the popular Baileigh Industrial DP-1000VS and has a very wide column to eliminate flexing when drilling at full capacity.
- Belt-driven drill press
- MT3 Taper
- 25mm steel maximum capacity
- Variable speed 185 to 2500 rpm
£175
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£4,200.00 £3,500.00
Product Details
The Promac BX-830VT-M Variable Speed Drill Press is a direct replacement for the popular Baileigh Industrial DP-1000VS and has a very wide column to eliminate flexing when drilling at full capacity.
The base and table are made from a very rigid casting adding to the strength of this 1″ maximum capacity drilling machine.
The inverter driven head allows the machinist or fabricator to run tooling at the proper speed for each drill or tap size available.
Running at the exact speed extends tooling life, something that can’t be accomplished on other drills like pulley driven styles. The BX-830VT-M drill press also comes with a coolant system, safety guarding and a halogen light.

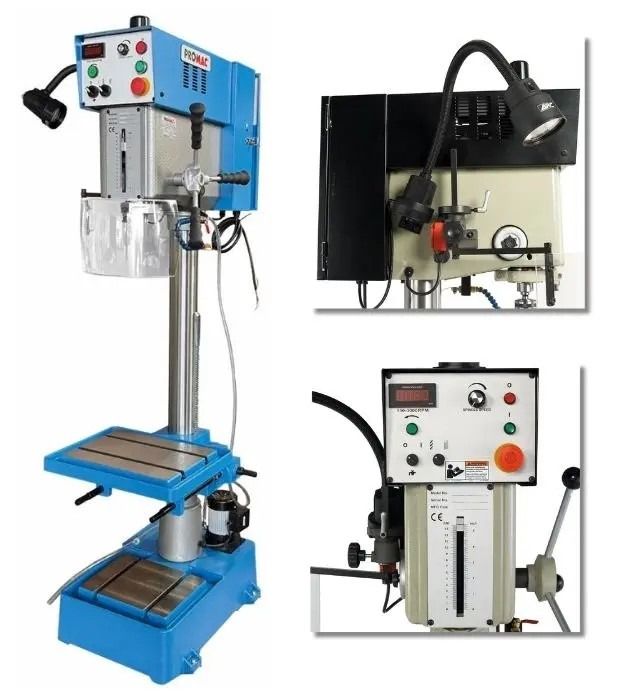

Shown with optional chuck & taper.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Promac BX-830VT-M Variable Speed Drill Press
| Motor | 1.5 kw |
| Quill Diameter | 62 mm |
| Spindle Nose to Table | 605 mm |
| Spindle Nose to Base | 1150 mm |
| Spindle Speed 185 | 185 – 2500 rpm |
| Spindle Taper | MT 3 |
| Table Slot | 16 mm |
| Tapping Capacity Steel | 16 mm |
| Motor Coolant | 0.125 kw |
| Drill Capacity Steel | 25 mm |
| Power | 220V / 1-phase |
| Shipping Weight | 263 kgs |
| Swing | 530 mm |
| Spindle Travel | 100 mm |
| Column Diameter | 92 mm |
| Base Dimensions | L x W 685 mm x 485 mm |
| Shipping Dimensions | 813 x 610 x 2007 mm |
| Belt Table Dimensions | 460 mm x 360 mm |
