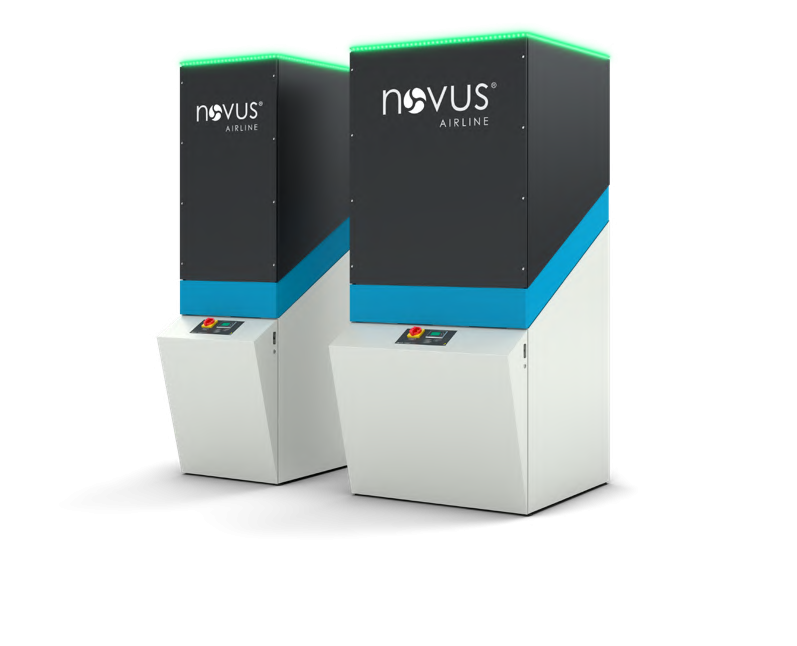

Novus Airline 6P

Part No. 6P

The Novus Airline 6P provides powerful dust and fume extraction.

It is ideal extraction for deployment at continuously operated machines and in process-dependent production.

Airflow from 4 000 to 10 000 m³/h.

£65
Shipping outside UK - Contact us

In stock Please call for latest availability - 0800 032 0905

POA
£0.00 £0.00
Get in touchIs this the right product for you?Ask us a question
Novus
Novus
Novus Air specialises in the manufacturing of dust and fume extractors and rely on a balance between innovation and sustainability. Novus products are characterised by high technology standards and energy efficiency throughout the range.

Product Details

Features:

  • Maximum filter service thanks to 3-1 principle
  • Demand-appropriate design per system unit from 4 000 to 10 000 m³/h air volume
  • Silent operation guarantees concentrated work without disruptions
  • Intelligent dedusting cleans the filter cartridges fully automatically
  • Maximum dust discharge up to 2 x 200 litres
  • Tool-free exchange of standard barrels and simple disposal without reloading
  • Compact design takes up relatively little space
  • Integrated LED strip shows the system status
  • Variable exhaust air return via pipeline or diffuse outlet
  • Variable pipeline connection via 360° connectable pipe bend on the rear of the device
  • Attractive industrial design where you might not expect it
  • Ergonomic control panel at a pleasant and optimised working height

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

Novus Airline 6P
   1 x EC-Turbo   2 x EC-Turbo
 Motor   2 x 3.9 kW, EC    4 x 3.9 kW, EC
 Power Supply   3 - 400 V, 50 Hz TN S System
 Connector  5 pin 32A CEE plug
 Preliminary Fuse   per module
 Power Consumption   7.3 kW  14.6 kW
 Nominal Airflow  5 000 m³/h  10 000 m³/h
 Maximum Airflow  6 800 m³/h  13 600 m³/h
 Static Pressure  2 800 Pa
 Maximum Pressure  4 800 Pa
 Dust Container  2 x 200 l
 Noise Level  < 75 dB(A)***  < 80 dB(A)***
 Weight  1000 kg
 Colour  RAL7021 + RAL5012 + RAL7035
 *** backside with outlet into piping
