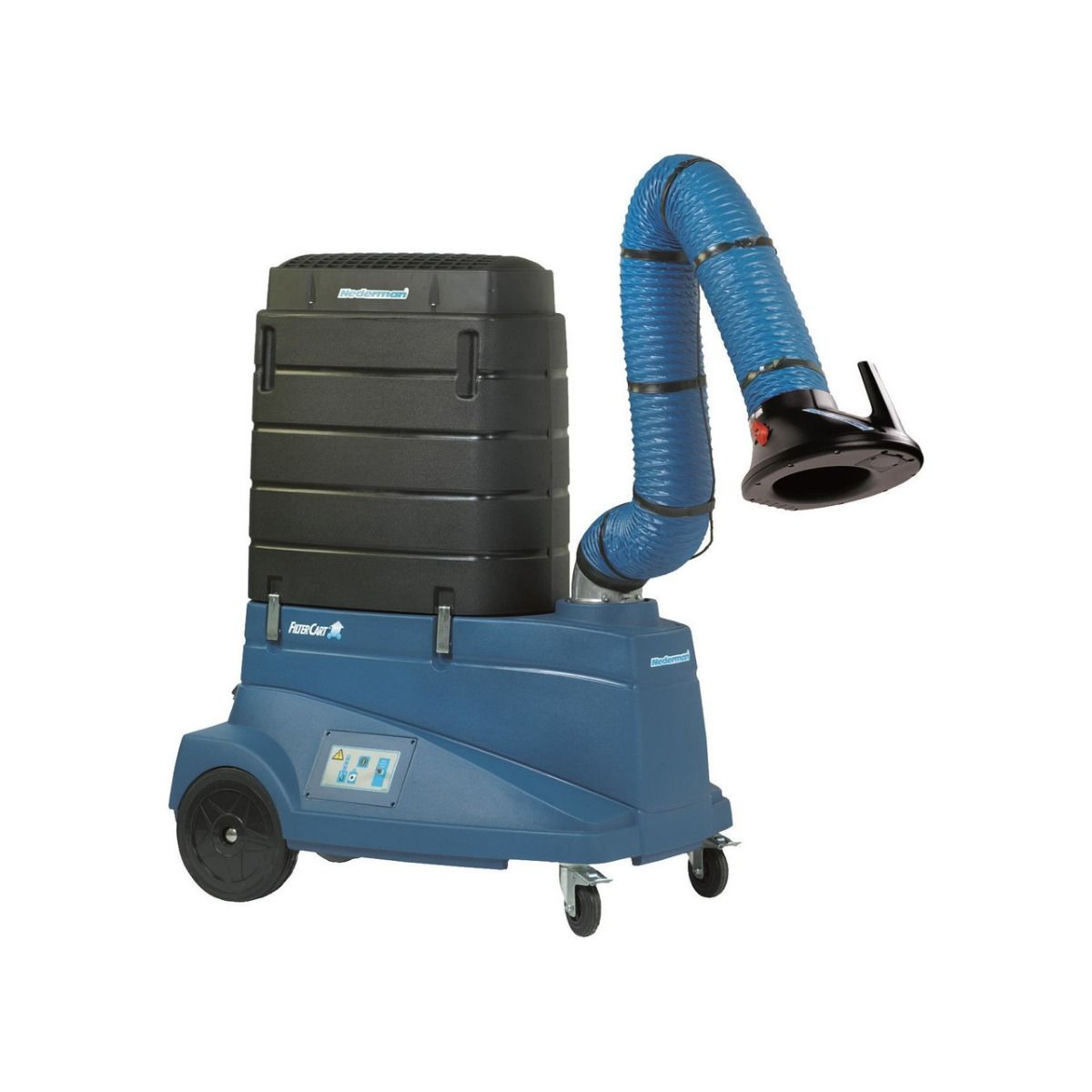

Nederman FilterCart +3m Original - No Light in Hood
Part No. 12635545, 12636145
The Nederman FilterCart Original mobile filter unit for light welding extraction applications is suitable for MIG, TIG and Stick Welding of steel. Supplied with Nederman 3m Original Arm fitted onto the unit and Nanofiber, High Efficiency filter. The LED Light is not supplied with this FilterCart Original model.
The FilterCart is ideal for operators who require a mobile and reliable source of extraction, as the castor system and versatile, positionable arm allow for maximum manoeuvrability between points of work.
The included disposable 30 m² NANOFIBER high efficiency filter makes it the ideal choice for light duty or medium duty intermittent use such as maintenance and repair welding or dust applications where 1000 m³ per hour or less is required.
Note : When using a Filtercart to extract fumes from a spark generating process such as welding, we recommend the installation of a hood spark arrester, part number 10551335 (see options below).
Other accessories include an additional HEPA high efficiency H13 filter, and spare main filter
If you are looking for a similar Nederman mobile system with a cleanable filter and a collection bin, then the FilterBox can be purchased here. Also available is the Filtercart wth LED Light in the hood and the Filtercart Advanced+
Note - Pallet delivery to Goods In / Kerbside only.
Product Details
The Nederman FilterCart model has the best performance when it comes to welding applications. The FilterCart Original can also be delivered with a 3 m (10 ft) long arm if a larger working range is needed. Typical application is light welding and extraction operations.
Specifications for FilterCart Original portable extractor
- Airflow in arm: 750 - 1050 m3
- Weight: 71- 73 kg
- Arm diameter: 160 mm
- Noise level: 73 dB(A)
- Filter efficiency: Main filter>99 % -HEPA filter >99.97 % DOP 0.3 mm
- Filter area: main filter 35 m2 - HEPA filter 7.5 m2
Spare Parts
Purchasing spares,
made easy.
Technical Specification
- Dimensions : 1145 x 770 x 1410mm
- Weight : 73kg
- Airflow in arm : 750 - 1050 m3/h
- Power : 110VÂ
110V Plug - 16A Straight 2P+E 110V Yellow
