Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications.
BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.

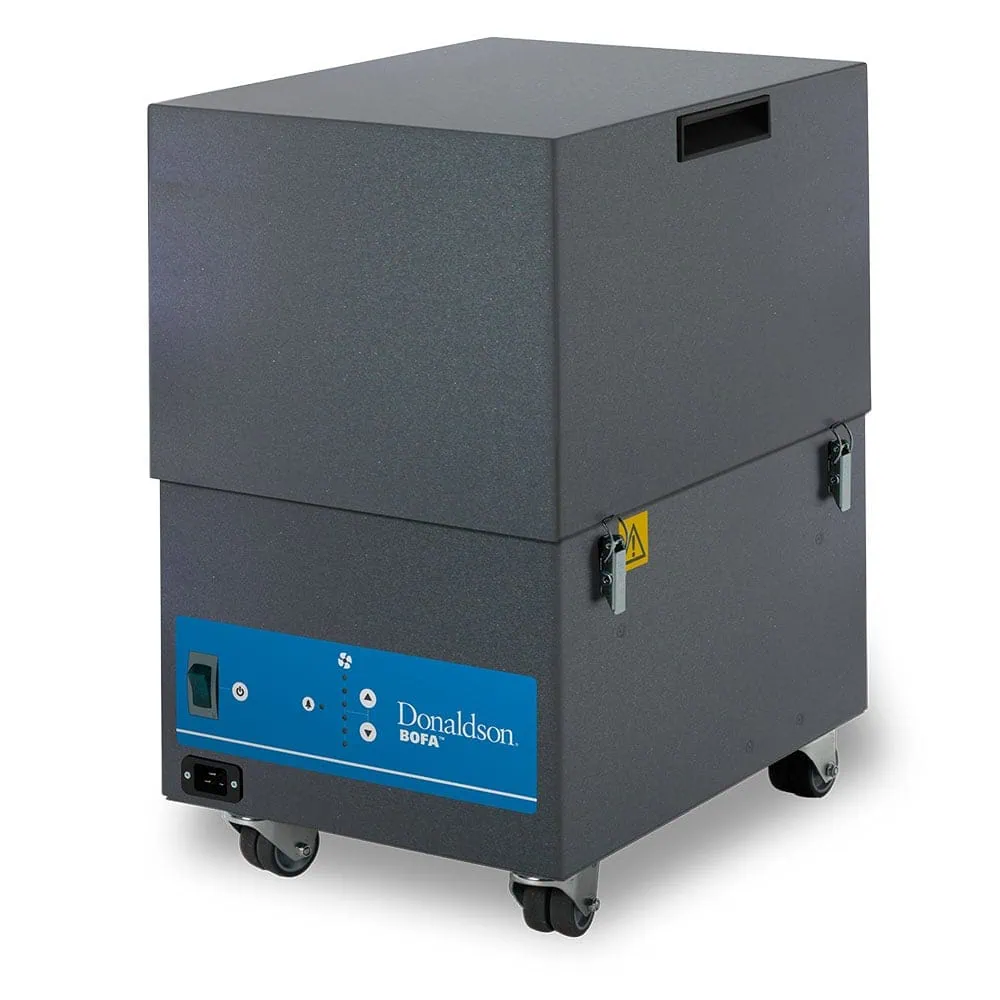

BOFA 3D PrintPRO 4 Extraction Unit
Part No. 1U5376002-2127-EU
The refreshed BOFA 3D PrintPRO 4 provides a premium fume extraction solution for high performing 3D printers. With a special blend of chemical adsorbents and high efficiency particulate filter (HEPA), the extractor delivers protection against emissions from 3D printing processes.
The enhanced 3D PrintPRO 4 is suitable for larger additive manufacturing processes including fused filament fabrication, stereolithography, digital light processing and material jetting.
The upgraded unit has advanced multi-stage gas filtration, with a deeper carbon bed to filter a greater volume of fume, thereby extending filter life and facilitating safer, odourless printing for longer. This is complemented by a larger HEPA filter, enabling multiple 3D printers to be hooked up to a single BOFA unit, optimising investment in filtration technology to support atmosphere management and help prevent the build-up of particulate residue.
Please see Product Details below for factory fit option details.
Delivery normally within 4 weeks
£40
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£1,813.51 £1,511.26
Product Details
The BOFA 3D PrintPRO 4 provides a high fume evacuation and filtration rate when connected to a large enclosed 3D printer via its extraction offtake point. The system can also return the ultra clean, filtered air either back to the printer enclosure for a cleaner print area or to the operator’s breathing zone. The BOFA 3D PrintPRO 4 combines high flow rate with speed control within a compact free standing unit.
Features Include
- Digital speed control
- Filter change indicator
- Multi layer filtration - HEPA and gas filters
- Hose inlet connections - 75mm
- Low noise level
- Powder coated for durability
- Small footprint
- Compact size
- CE approvals
Factory Fit Options
- 24V S/S - Remote stop/start signal ensures that your fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
- FCS - Our filter change signal alerts you when your filter is full and needs changing.
- O/R - Enables the extraction system to operate fully with or without either DC voltage input or the volt-free input.
- VOC - Our VOC (volatile organic compound) sensor continuously monitors exhaust air and alerts you if VOC levels exceed the pre-set threshold, preventing the unwanted release of VOCs and other nuisance odors.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
BOFA 3D PrintPRO 4 Extraction Unit
| Â Dimensions (L x W x H) | Â 525 x 385 x 625 mm |
| Â Voltage | Â 230 V - 1 ph. |
| Â Power Consumption | Â 8.8 amps - 50/60 Hz |
|  Max. Airflow |  270 m³/h |
|  Min. Airflow |  50 m³/h |
| Â Maximum Available Vacuum | Â 100 mBar |
| Â Cabinet Construction | Â Powder Coated Mild Steel |
| Â HEPA/Gas Filter Media | Â Borosilicate |
| Â HEPA/Gas Filter Housing | Â Zintec Mild Steel |
|  HEPA/Gas Filter Surface Area |  3.5 m² |
| Â HEPA/Gas Filter Efficiency | Â 99.997% @ 0.3 microns |
| Â Particulate Media Construction | Â 50 mm maxi pleat construction with glue bead spacers |
| Â Treated Activated Carbon | Â 10.6 kg approx. |
| Â Other adsorbents | Â 5 kg approx. |
| Â Weight | Â 51 kg |
| Â Sound Level | Â <75 dB(A) (at typical operating speed) |
| Â Approvals | Â UKCA/CE |
