Bofa V250 Fume Extraction Kit c/w FumeCAB 250
Part No. 1U30351595-1287
Bofa FumeCAB 250 Extraction Kit
With the introduction of the HSG258 code of practice, partial enclosures are steadily becoming the preferred option for operator protection from fumes generated from processes such as hand soldering, solvent use and other processes that produce harmful fumes. BOFA's FumeCAB 250 fume cabinet has been purposefully designed to help employers comply with industry best practice.
Main filter options : Combined HEPA/GAS, Double GAS (Carbon Only)

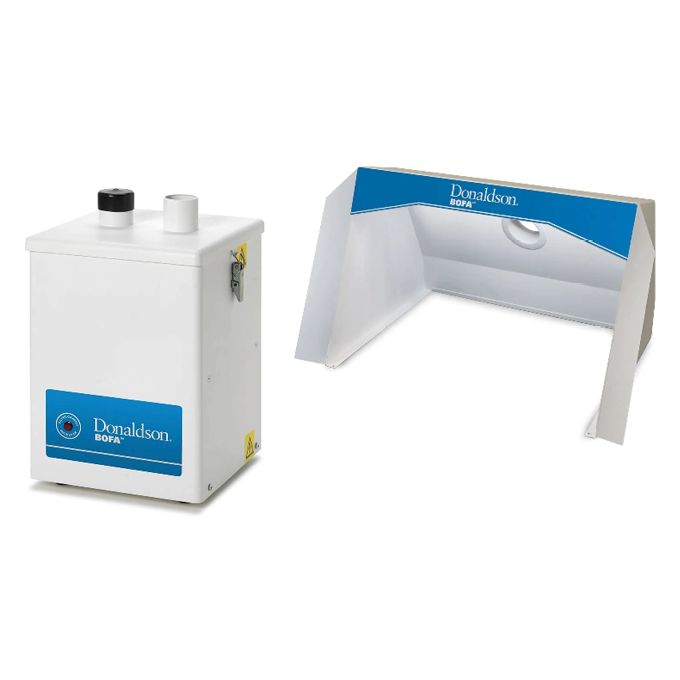

Kit includes : Bofa V250 Extraction Unit, FumeCAB 250 partial enclosure, ø75mm flex hose connection kit, pre-fiter and main filter.
The FumeCAB 250 is also available separately - A1020127Â

Product Details
The Bofa FumeCAB 250 is a fume cabinet designed to extract dusts generated from processes such as hand soldering. It has been purposefully designed to help employers comply with industry best practise.
With the introduction of the HSG258 code of practice, partial enclosures are steadily becoming the preferred option for operator protection from fumes generated from processes such as hand soldering, solvent use and other processes that produce harmful fumes.
Standard features include:
- LED strip light
- Powder coated white finish
- Strong rigid construction
- 1 x 1.5 m of 75mm flexible hose
The fumecab can be purchased individually or as a kit with the BOFA V250 extractor. Filter options include combined HEPA/Gas for soldering applications or double gas filter for use with organic solvents.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
 Dimensions (L x W x H) |  300 x 400 x 290 mm |
 Opening Dimensions |  400 x 265 mm |
 Voltage |  230 V - 1 ph. |
 Recommended Face Velocity |  0.5 m/s |
 Power Consumption |  0.9 amps - 50/60 Hz |
 Max. Negative Pressure |  30 mbar |
 Max. Airflow |  180 m³/h |
 Cabinet Construction |  Powder Coated Mild Steel |
 Weight |  10 kg |
 Duct Size |  50 mm |
 Max. Duct Run |  5 meters |
 Pre Filter Media |  Glass Fibre - Pad |
 Pre Filter Efficiency |  F7 - 96% @ 2 microns |
 HEPA Combined Filter |  Glass Fibre - Zintec Mild Steel |
 HEPA Filter Efficiency |  99.997 % @ 0.3 microns |
 Treated Activated Carbon |  5 kg |
 Noise Level |  < 55 dB(A) (at typical operating speed) |
 Approvals |  CE |
