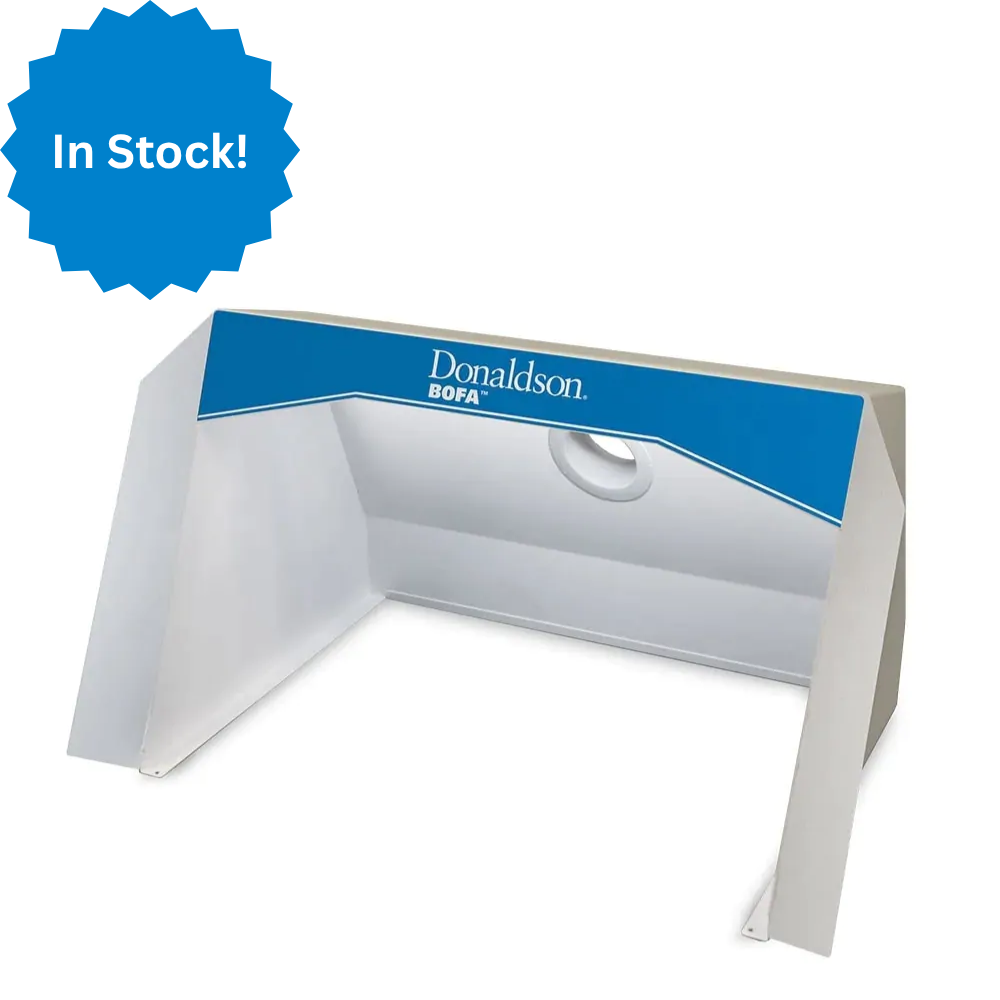

Bofa FumeCAB 250

Part No. 1UA1020127

With the introduction of the HSG258 code of practice, partial enclosures are steadily becoming the preferred option for operator protection from fumes generated from processes such as hand soldering, solvent use and other processes that produce harmful fumes. BOFA's FumeCAB 250 fume cabinet has been purposefully designed to help employers comply with industry best practise.

Note - if purchasing for use with an existing V250 extraction unit with a twin ø50mm spigot lid, a replacement lid with single ø75mm spigot will be required to convert for use with the FumeCAB 250 - see option A1060062 below.

Also available as a Kit including Bofa V250 extraction unit here.

Delivery normally within 7days
£20
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£554.40 £462.00
£554.40 £462.00
Add to Wishlist Add to Compare
Get in touchIs this the right product for you?Ask us a question
Bofa
Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications. BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.
Product Details
Technical Specification

Product Details

The Bofa FumeCAB 250 is a fume cabinet designed to extract dusts generated from processes such as hand soldering. It has been purposefully designed to help employers comply with industry best practise.

With the introduction of the HSG258 code of practice, partial enclosures are steadily becoming the preferred option for operator protection from fumes generated from processes such as hand soldering, solvent use and other processes that produce harmful fumes.

Standard features include:

  • LED strip light
  • Powder coated white finish
  • Strong rigid construction
  • 1 x 1.5 m of 75mm flexible hose

The fumecab can be purchased individually or as a kit with the BOFA V250 extractor.  Filter options include combined HEPA/Gas for soldering applications or double gas filter for use with organic solvents.

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

Bofa FumeCAB 250
 Dimensions (L x W x H)  300 x 400 x 290 mm
 Opening Dimensions  400 x 265 mm
 Voltage  230 V - 1 ph.
 Recommended Face Velocity  0.5 m/s
 Power Consumption  0.9 amps - 50/60 Hz
 Max. Negative Pressure  30 mbar
 Max. Airflow  180 m³/h
 Cabinet Construction  Powder Coated Mild Steel
 Weight  10 kg
 Duct Size  50 mm
 Max. Duct Run  5 meters
 Noise Level  < 55 dB(A) (at typical operating speed)
 Approvals  CE
