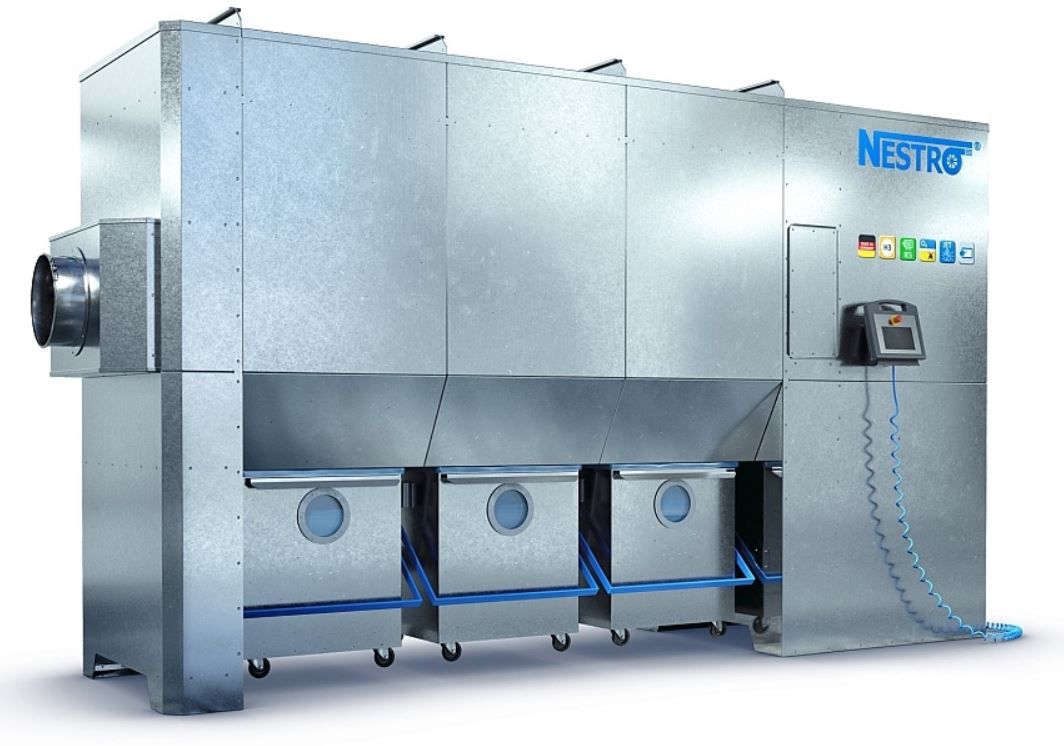

Nestro Dust Extraction System NE J 300
Part No. NE J 300
The Nestro NE-series industrial dedusters are your solution for the energy-efficient extraction of wood dust and chips in joineries and carpentry shops. These economical dedusting systems promote a smooth production process, protect your machines and the health of your employees.
NE-series dust removers comply with all current requirements for dedusting equipment and are approved for internal installation in workshops.
A powerful deduster is ideal for use in the woodworking industry, as dust extractors for individual machines, small groups of machines or stand-alone solutions (where special extraction requirements exist). They can also be used for related materials, such as plastic, leather, paper or other industrial dusts.
£0
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
Nestro Deduster NE J 300 is a vacuum filter with a fan installed on the clean gas side and outstanding efficiency. All dedusters are equipped with automatic filter regeneration and, from NE J 200, with an automatic extinguishing system. In automatic mode, the deduster switches on and off in parallel with the machines that require extraction.
Features
- Saves investment and operating costs through short pipeline routes with low line resistances.
- Saves heating costs through circulating air operation without heat loss (filters guarantee a residual dust content of < 0.1 mg/m³).
- Saves maintenance costs through an intelligent, certified automatic extinguishing system without the use of water or dry chemicals.
- A ready-to-connect device saves installation costs (only power connection and junction of the pipeline required).
- Guarantees optimal suction with the integrated, proven clean air technology and constant target/ actual value comparison (of the processing machines).
- Offers four different disposal options using four alternative substructures, which can also be converted at any time.
Product Video
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Nestro Dust Extraction System NE J 300
| Certified according to BGHM, Germany | CE |
| Energy Efficiency Class Motor | IE5 |
| Power Consumption (kW) | 7.5 |
| Current Consumption (A) | 15 |
| Filter Area (m²) | 38 |
| Dimensions D x W x H (mm) | 1060 x 3981 x 2174 |
| Bin Volume (Wood Dust) (l) | 3x 160 |
| Weight (kg) | 1300 |
| Ø Suction Connection (mm) | 300 |
| Operating Air Volume (m³/h) | 7500 |
| Air Volume Maximal | Nominal (m³/h) | 6000 | 5085 |
| Negative Pressure Related to Nominal Air Vol. (PA) | 2400 |
| Total static Negative Pressure at Ventilator (PA) | 2950 |
| Maximum Noise Level According to MRL* (dB (A)) | 72 - 74 |
| Filter Regeneration | Compressed-Air Pulse (Jet) |
| Extinguishing Device | Certified Fire Protection Flap  (Hermetic Oxygen Seal) |
| Operation Mode | Permanent Mode |
| Current | Supply Voltage | Three Phase Current | 400 V | 50 Hz |
* = Open-air noise level according to German machinery directive with a distance of 1.0 m at a height of 1.6 m. Measurement according to EN-ISO 11201, measured at nominal air volume without material conveyance.
Ambient Conditions: 5°C < t < 40°C, measurements in accordance with DIN standard 8416 (20 m/sec.).
