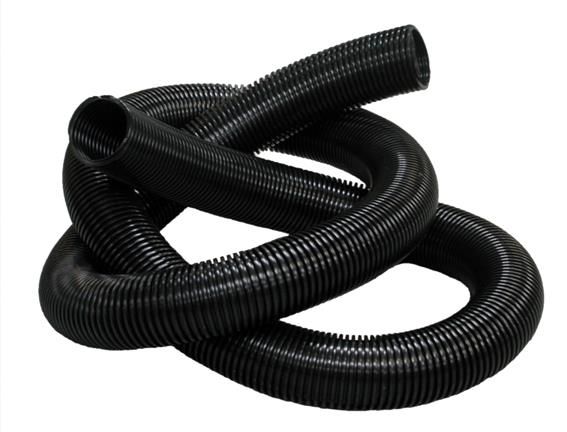

Geovent GeoFlex High Extraction Hose
Part No. 09-007, 09-008, 09-020, 09-009, 09-082, 09-010
The Geovent GeoFlex High Extraction Hose is made of ethylene-vinyl-acetyl (EVA) and used at medium to high vacuum extraction. Available as antistatic.
Suitable for the extraction of warm fumes, dust, air and welding fumes.
Temperature range from – 40°C to + 60°C.
Dim.: ø32 to ø76 mm. Length: Up to 20 m. Colors: Yellow, grey and black.
Please indicate in the quantity box the number of meters you require. Minimum is 1 meter, Maximum 10 meters.
Delivery normally within 3 weeks
£25
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£42.00 £35.00
Geovent
Geovent specialise in the supply of dust and fume extraction systems as well as industrial ventilation and local exhaust ventilation in automotive workshops.
There is a huge range of products to choose from, and Geovent are constantly innovating to provide the best solutions for the market.
Product Details
The Geovent GeoFlex High is a hose made of EVA, which is used for extraction when medium or high vacuum is needed.
Suitable for extraction of hot fumes, dust, air and welding fumes. Easy to connect to the Geovent couplings (high pressure).
| Part. Code | Inside Diam. [mm] | Outside Diam. [mm] | Weight [kg/m] | Bend. Rad. [mm] | Max. Vacuum [kPa] |
| 09-007 | 32 | 40 | 0.27 | 80 | 39 |
| 09-008 | 38 | 46 | 0.32 | 100 | 50 |
| 09-009 | 51 | 60 | 0.44 | 150 | 50 |
| 09-010 | 76 | 86 | 0.65 | 300 | 13.7 |
| 09-020 | 45 | 53 | 0.38 | 125 | 2 |
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Geovent GeoFlex High Extraction Hose
| Material | Ethyl-vinyl-acetyl (EVA) hose. The hose is constructed of extruded EVA material and is in - and outside corrugated. The hose is self supporting, which means that a siral is unnecessary. |
| Colour | Yellow, grey and black. The black hose is antistatic, the yellow hose is not antistatic. |
| Length | Per meter, up to 20 meter |
| Temperature Resistance | -20 °C to +60 °C |
