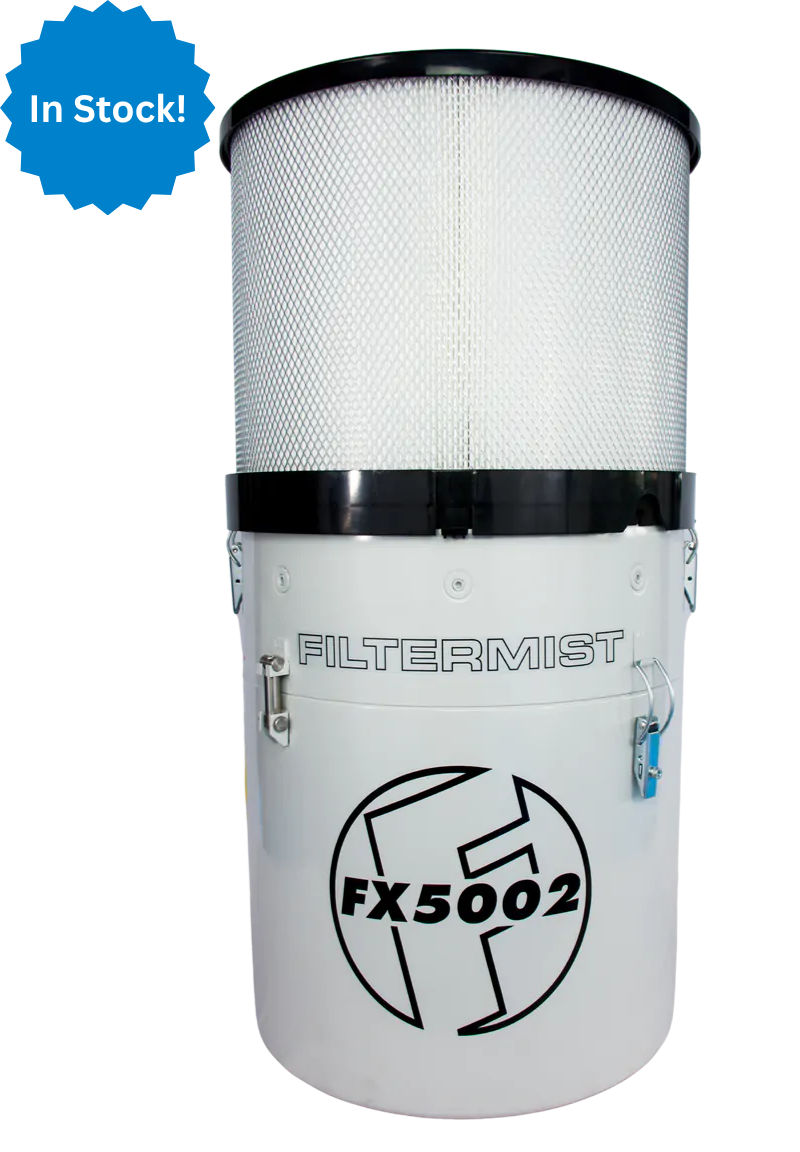

Filtermist FX5002 Oil Mist Collector Kit

Part No. 20-201-30-007

FX Series Oil Mist Collector

Filtermist FX5002 units efficiently remove oil & coolant mist, fume and steam in a various amount of manufacturing operations around the world.

New June 2023 - now supplied as standard with the High Efficiency AFB Afterfilter (99.95% efficiency at 1 μm) manufactured using a H13 grade oleophobic filter paper to suit the FX5002.

The EUK-Kit includes direct mounting kit (3 Metre Flex, Hose Clips, Flange Adaptor) & F Monitor.

Filtermist motors are wound for low & high voltage and operate on 50Hz & 60Hz (see Manual). A connection diagram can be found inside the motor terminal box.

NOTE: Motor terminal connections will be configured for the motor to run at High voltage

The motors must be connected via a 3-phase, direct-on-line starter and isolator (not included) with suitable thermal overloads or via an independent supply in the machine control panel.

Please see datasheet, FAQ & Manual downloads for information on selecting unit for your machine. Installation also available, contact sales@aessolutions.co.uk

* IMPORTANT - we recommend that FX5002 unit NOT be Direct Mounted & that a floor stand / top half bracket mount be used for safe lifting and servicing of the unit. If Direct Mounting used, 2 people will be required for servicing.



£35
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£2,721.60 £2,268.00
£2,721.60 £2,268.00
Filtermist
Filtermist
Filtermist provides an extensive range of products designed to ensure the air in production facilities is free from contaminants such as oil mist, dust and fumes. Filtermist aims to protect people by insuring cleaner, safer, and productive working environments.
Get in touchIs this the right product for you?Ask us a question

Product Details

Why use Filtermist units ►

  • Oil mist is hazardous to your health.
  • Oil mist causes slippery floors and can cause damage to electrical switchgear and circuitry.
  • Oil mist can lead to coating of ventilation pipes, a potential fire risk.
  • Official regulations are becoming increasingly stringent.
  • Reduce energy and heating costs by recycling clean air back into the factory.
  • No expensive media filters to replace results in low maintenance costs.

How Filtermist units work ►

  1. Oil mist is removed at source
  2. Oil mist is removed from the air by centrifugal impaction
  3. Clean oil is returned to machine
  4. Clean air is returned to workplace
  5. Smoke and fume can be removed and efficiency increased with the addition of a clip-on afterfilter

FX Series Oil Mist Collector

preview

Filtermist units are in operation on tens of thousands of applications, from high precision CNC machining centres to traditional open grinders. Filtermist is an industry standard from aerospace to medical and automotive to food processing. Units are available in mild steel and stainless steel with dozens of installation accessories to create bespoke solutions for almost any type of oil mist problem.

The filtermist range can be used in a number of applications including:

  • EDM/Spark Erosion
  • Grinding
  • Machining Centres
  • Industrial Saws
  • Food Processing
  • Lathes
  • Parts Washing
  • Special Purpose

Spare Parts

Purchasing spares,
made easy.

Service & Support For

Dust & Fume Extraction

Find out more

Technical Specification

Filtermist FX5002 Oil Mist Collector Kit
Model  Airflow m3/hr
Motor

 A

 mm

B

mm

 C

 mm

 D

 mm

 E

 mm

 F

 mm

 Weight

kg

 Noise

 dB(A)

 FX5002   1675 @ 50Hz 1.5kW 50Hz
 200v, 220v, 380v, 400v
 357   634.5   35   198   378   398   31.8   71
