Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications.
BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.

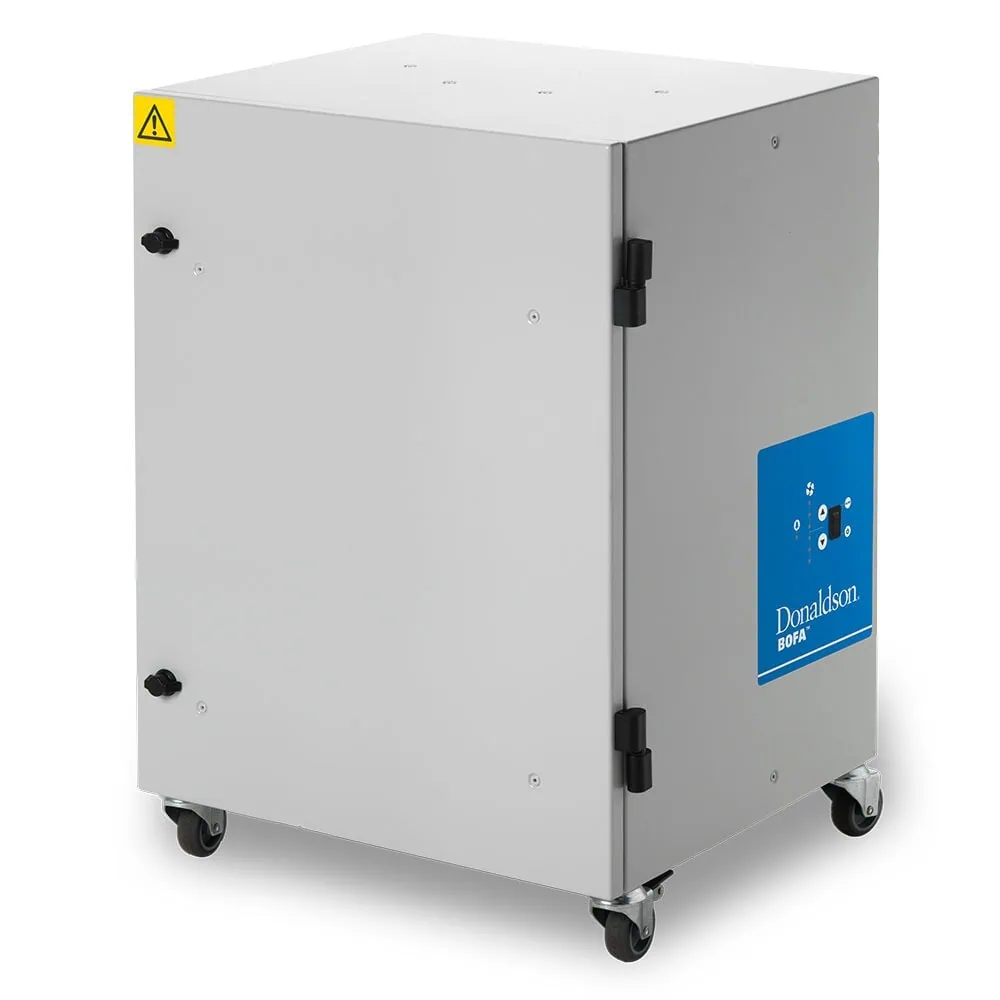

Bofa DustPRO Universal
Part No. 1U30821047-1119
BOFA’s DustPRO Universal stand alone dust extraction unit has been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and turning. Also know as the BOFA DP Universal.
Please see Product Details below for factory fit option details.
Delivery normally within 4 weeks
£40
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£2,025.91 £1,688.26
Product Details
The Bofa DustPRO Universal stand alone dust extraction unit has been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and turning.
One of the main problems with other router extraction relates to the type of pump used. Most have brushed motors which are noisy in operation and frequently burn out, with the average life of brushes being around 800 hours.
The unit’s high vacuum pump is brushless and designed for continuous running to in excess of 30,000 hours before requiring servicing. The bag filter has a large 18 litre capacity and the HEPA filter is very high efficiency.
Factory Fit Options
- 24V S/S - Remote stop/start signal ensures that your fume extraction system operates only when your machine is running, helping to save on both running costs and energy.
- FCS - Our filter change signal alerts you when your filter is full and needs changing.
- O/R - Enables the extraction system to operate fully with or without either DC voltage input or the volt-free input.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Bofa DustPRO Universal
| Â Dimensions (L x W x H) | Â 535 x 460 x 590 mm |
| Â Voltage | Â 115-230 V - 1 ph. |
| Â Power Consumption | Â 1.1 kW - 50/60 Hz |
| Â Max. Negative Pressure | Â 96 mbar |
|  Max. Airflow |  285 m³/h |
| Â Cabinet Construction | Â Powder Coated Mild Steel |
| Â Weight | Â 33 kg |
| Â Pre Filter Bag Media | Â Glass Fibre |
| Â Pre Filter Bag Holding Capacity | Â 18 litres |
| Pre Filter Bag Efficiency | Â 99% @ 0.3 microns |
| Â HEPA Filter Media | Â Glass Fibre |
| Â Filter Efficiency | Â 99.997% @ 0.3 microns |
| Â Sound Level | Â <66 dB(A) (at typical operating speed) |
| Â Approvals | Â CE |
