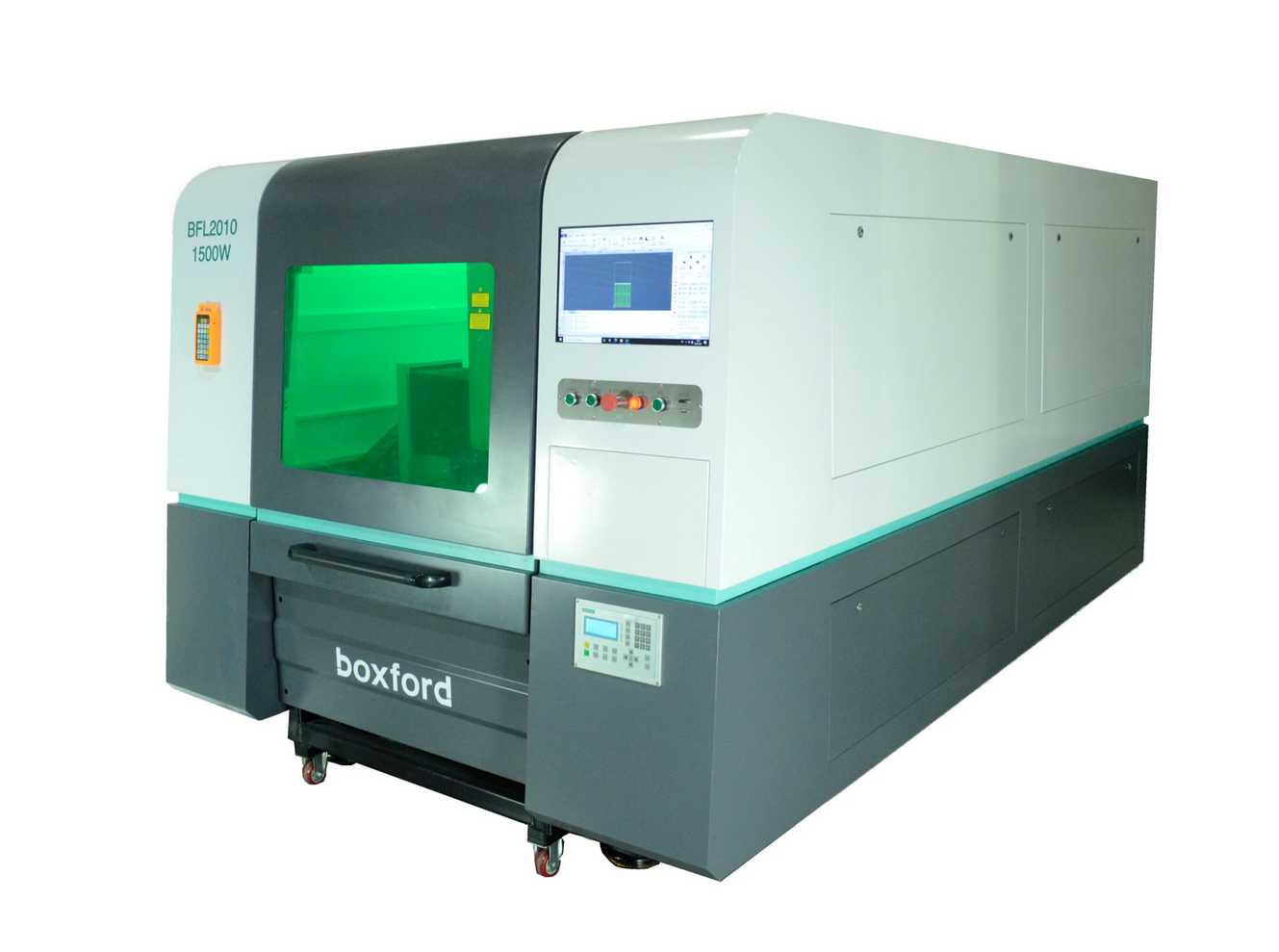

Boxford BFL2010 3 kW
Part No. BFL2010-3kW
The Boxford BFL2010 3 kW is a high precision metal cutting fibre lasers are ideally suited to all kinds of training, prototyping and low to medium volume manufacturing applications.
Includes:
- Fully enclosed system for optimal fume and debris management
- Rigid construction and motion system incorporating high quality Taiwanese linear guide rails and racks, together with Japanese servo drives, allowing speeds of up to 40 metres per minute to be achieved
- Integrated PC control system
- Automatic head focus system for automatically adjusting focal length
- Automatic capacitive height control system for optimal cutting
- Integrated red dot beam pointer for plate location/orientation and program dry run
- Superior fibre laser with up to 100,000 hours life span
- Integrated cutting table with removable slats and material recovery tray
- Optional Boxford supplied extraction system, which is IFA certified and meets the highest testing level (W3), facilitating the extraction of fumes from high alloy steels with over 30% chromium and nickel content.
£65
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
Materials which can be fibre laser processed
- Mild steel
- Stainless steel
- Aluminium
- Anodised aluminium
- Zintec
- Galvanised steel
- Brass
- Shim steel
Included accessories
- Auto focus laser head as standard
- Wireless operator keypad
- Wireless keyboard and mouse
- Pull out table to assist with sheet loading
- Chiller based laser source cooling system
- Full day on-site UK mainland training
- Warranty - 2 years (excluding consumable items such as: cutting tips, lens protective glass, support slats and extraction filters)
Optional accessories
- Bespoke downdraught fume extraction/air filtration system
- Stand-alone compressor for facilitating low pressure non-gas cutting and extraction
- High pressure compressor for non-gas cutting of thick materials
- Additional cutting head consumables (cutting tips, lens protective glass, etc)
- Set of replacement filters for extraction/air filtration system
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Boxford BFL2010 3 kW
Cutting area | 2000 x 1000 mm |
Z axis travel | 100 mm |
Laser power source | 1.5 kW |
Laser type | Fibre 1070 nm WL |
Integrated laser cooling system | Water chiller |
Focus system | Auto Focus |
Cutting thickness | 12 mm mild steel 5 mm stainless 3 mm mild steel 2 mm stainless 3 mm aluminium |
Max cutting speed | 40 m/min |
Max acceleration | 0.5G |
Location precision | <0.01 |
Optics | <0.373 mrad beam |
Machine weight | 1500 kg |
Dimensions (W x D x H) | 2100 x 3400 x 1850 mm |
Mounting safety | Floor Class 2 closed |
Operating modes | Configuration Cutting |
Compressed air requirements | Surface etching Extractor only - 6.0 bar @ 420 l/min Low pressure compressed air cutting and extractor - 6.9 bar @ 650 l/min |
Overall footprint (with extract & ducting) | High pressure compressed air and extractor - 18 bar @ 1100 l/min Extractor at side - 3100 x 3400 mm Extractor at rear - 2100 x 4400 mm |
Power requirements | 380 V 3 ph. @ 32A |
