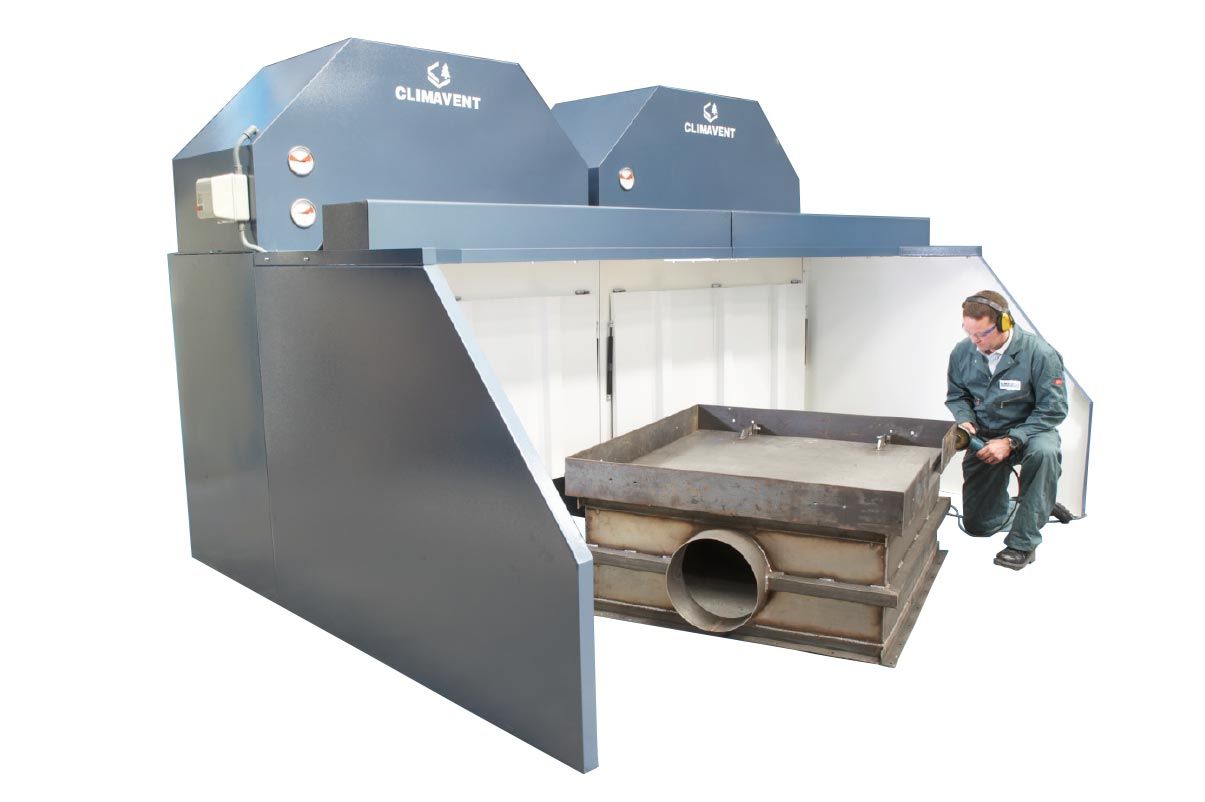

SB Low Profile Booths
Part No. SB 1.8, SB 2.4, SB 3.6
Low Profile Booths provide protection for both the operator and the working environment by extracting the light airborne dusts generated by sanding, grinding and trimming processes.
The booths are available in three standard sizes: 1.8, 2.4, 3.6 metres and are only 1.2 metres high which ensures that the operator can only work on the clean side of the booth.
The booths have recessed tops to allow clearance for overhead lifting of large work pieces, large work is normally carried out on the floor whilst intermediate work can be carried out on tresles or purpose built insertable benches.
Product Details
Supplied with
SB Booths are supplied with integral lighting, fans and two stage replaceable filter elements and pressure differential gauges that monitor the condition of each filter stage. This booth is used for non hazardous materials.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
| Model | Air Volume | Motor | Noise Level | Electrical Supply | Length | Width | Height |
| SB 1.8 | 10 000 m³/h | 3 kW | 78 dB(A) | 415 V 3 ph. | 1800 mm | 2750 mm | 1400 mm |
| SB 2.4 | 10 000 m³/h | 3 kW | 78 dB(A) | 415 V 3 ph. | 2400 mm | 2750 mm | 1400 mm |
| SB 3.6 | 20 000 m³/h | 2 x 3 kW | 80 dB(A) | 415 V 3 ph. | 3600 mm | 2750 mm | 1400 mm |
