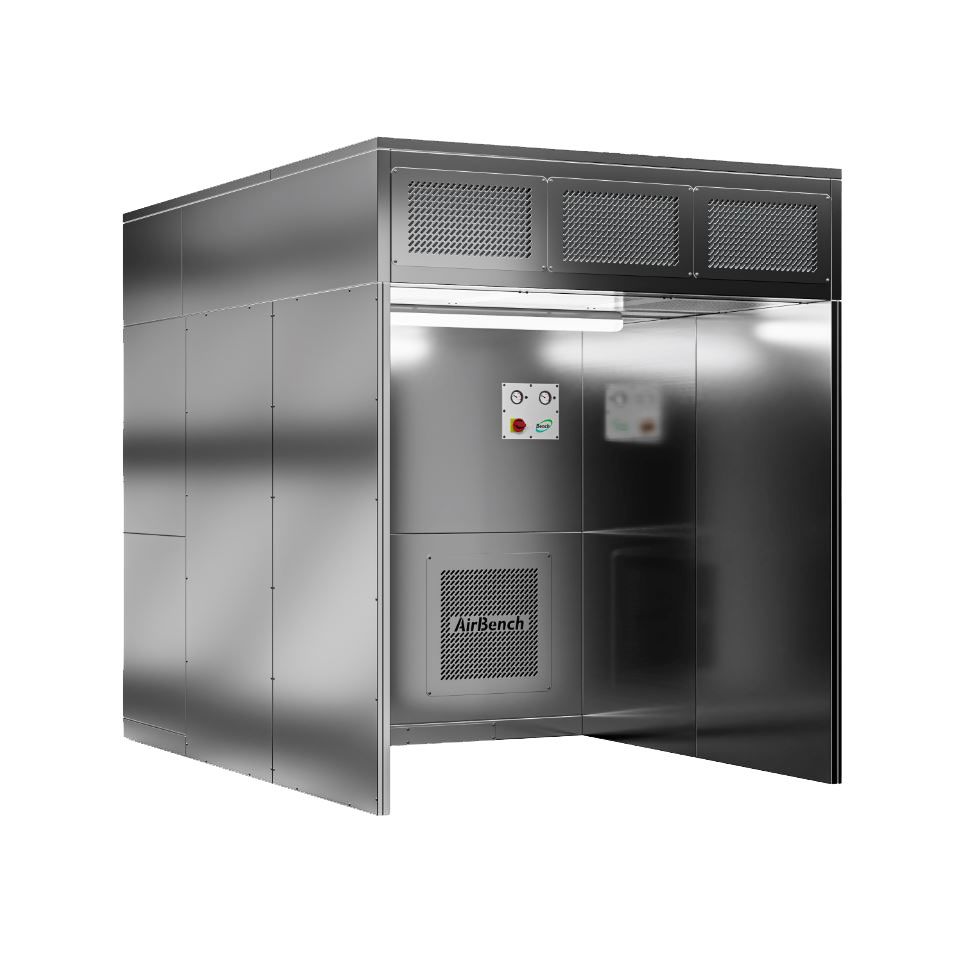

Airbench Vertex DFB Downflow Booth
Part No. DFB2000
The VertEx DFB is a full downflow booth from AirBench. Available in stainless steel or powder coated mild steel.
Downflow booths provide a flow of clean filtered air from above, with extraction to the rear. Designed for total operator protection.
Designed for use in food production or pharmaceutical environments. Also available in ATEX configuration.
- 5 standard sizes up to 6m width.
- Two stage filtration
- UK manufacture
- Various options available
Product Details
A downflow booth is designed to provide a continuous airflow using very clean, filtered air, at a low air speed, moving downwards from the ceiling and over the operator. Air is then extracted backwards into multi-stage air filters located within the back wall of the flow booth.
This provides continuous recirculation, with a small percentage of the airflow being exhausted after filtration. This keeps the whole interior of the booth at negative pressure, preventing contaminants escaping from the downflow booth. Filter selection generally consists of 2-stage pre filters and medium grade secondary filters to the rear; with H13 HEPA filtration as final filters before air is returned to the booth. However, other filtration options can be provided.
Downflow booths, or dust containment booths, can be used to house dispensing equipment; as a weighing booth; or simply for operator protection during other manual processes.
Product Video
Spare Parts
Purchasing spares,
made easy.
Technical Specification
| Power Supply | 400v/3ph |
| Noise Level | <80dBA at 1m |
| Motor | High Efficiency EC Fan |
| Finish | T304 stainless steel as standard. Optional T316 or powder coated mild steel |
