DustControl
DustControl provides mobile and stationary dust extraction systems to solve your dust problems.
DustControl manufactures and customizes portable dust extractors and industrial extraction systems with very high levels of filtration to your requirements.

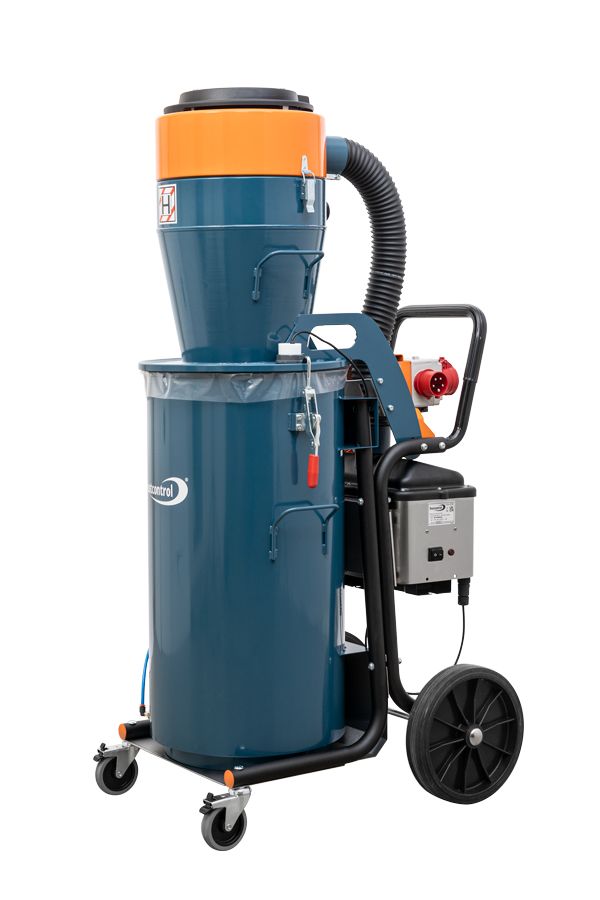

DC Chip Extractor
Part No. DC Chip Extractor
The DC Chip Extractor is a specially designed dust extractor chip collector to be connected to a fence saw. It is also suitable for general cleaning and source extraction on most saws where continuous operation and a high separation rate are required. And, like all Dustcontrol dust extractors, the DC Chip Extractor is very service-friendly.
£0
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
Features
- Suitable for general cleaning and source extraction on most saws where continuous operation and a high separation rate are required.
- Robust, mobile device that is easy to move.
- Can be used either as a standard 230 V machine or, as a part of a system with 3 phase cord, with auto start connected to a saw machine.
- Multiway socket, 3-phase
- Updated tighter container
- Better flow and larger filter area
- Service friendly
Spare Parts
Purchasing spares,
made easy.
Technical Specification
DC Chip Extractor
| Dimensions HxWxD (mm) | 1530x600x780 |
| Weight (kg) | 69 |
| Inlet Ø (mm) | 76 |
| Hose length Ø50mm (m) | 7.5 |
| Collecting container (l) | 90 |
| Max. flow fan (EU) 230V (m3/h) | 355 |
| Negative pressure max. (EU) (kPa) | 22 |
| Power (EU) 230V (W) | 2600 |
| Fine filter polyester, area (m2) | 1.85 |
| Degree of separation fine filter, EN 60335-2-69, Class M (%) | 99.9 |
| HEPA filter, area (m2) | 2.2 |
| Filter classification HEPA filter, EN 1822-1 | HEPA H13 |
| Degree of separation machine, EN 60335-2-69, Appendix A-A, Class H (%) | 99.995 |
| Max. sound level (dB(A)) | 70 |
