Nederman Airflow Alarm EX
Part No. 40780438
Nederman Airflow EX alarms available for different pressure ranges for monitoring of the set airflow in a duct.

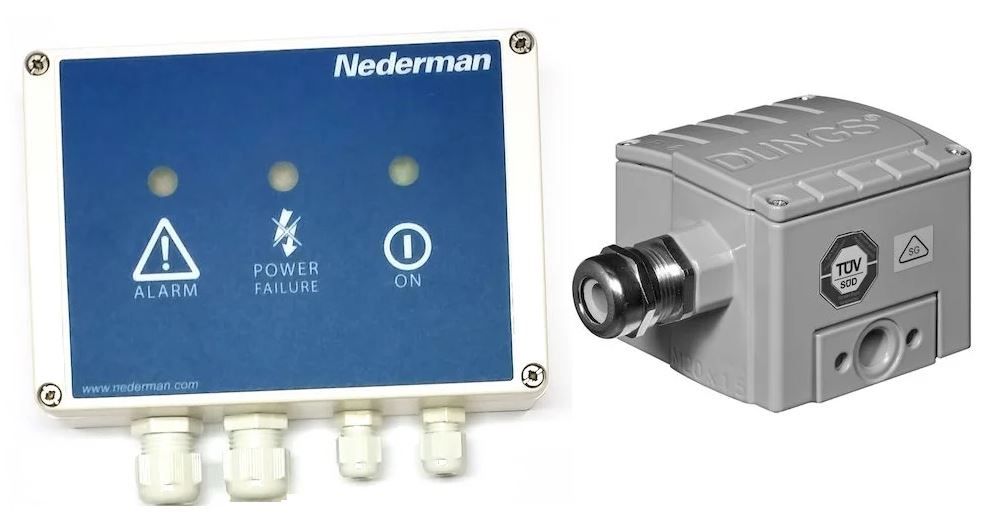

The Airflow Alarm consist of control box, pressure switch *, hose, inline filter, cable gland and battery.
* The pressure switch can be installed installation in ATEX zone 2 / 22, the control box shall not be installed in an ATEX zone. ATEX marking - II3G Ex nC IIB T6 Gc (Gas) II3D Ex tc IIIB T75°C Dc (Dust).
An Alarm is trigged (Red LED light and relay terminal) when the air pressure in the duct is outside preset limits.
For Nederman Standard Airflow alarm range please see here for details.
Product Details
The Airflow Alarm monitors pressure conditions in a duct. A pressure switch connected to the control box provides the signal input.
The Airflow Alarm is connected to the fan starter and automatically starts with the fan. An Alarm is trigged (Red LED light and relay terminal) when the air pressure in the duct is outside preset limits. The LED lights are powerful enough to have good visibility at a distance. 2 independent terminals for power supply.
The pressure switch can be installed installation in ATEX zone 2 / 22, the control box shall not be installed in an ATEX zone.
Features
- Assures optimal usage of system and secured functionality.
- Support the customer with their responsibility on air quality.
- Comply with Health and Safety legal requirements and recommendations.
- Continuous service and maintenance for prolonging system length of life.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Product Name | Airflow Alarm |
Protection class | IP54 for control box, IP65 pressure switch |
Installation | Indoor |
Ambient temperature range | 0-50 C (32 F to 122 F) |
Dimensions | 320 x 185 x 80 mm |
Weight (kg) | 1.5 + 0.7 |
Power supply | 85-230V AC, 50-60Hz |
Fuse | Max 13A |
Pressure switch | External contact < 100 Ohm |
12 VDC out alarm | +12 VDC max 200 mA |
Note | Temperature range - 15 < Ta < +70 Deg. C., Input separated by double isolation, Aluminium die casting casing, ATEX marking: II3G Ex nC IIB T6 Gc (Gas) II3D Ex tc IIIB T75°C Dc (Dust). |
Description | Capacity | Model |
Airflow alarm EX 40 | 40 - 300 Pa | 40780438* |
Airflow alarm EX 100 | 100 - 1000 Pa | 40780439* |
Airflow alarm EX 250 | 250 - 5000 Pa | 40780440* |
Airflow alarm EX 3000 | 3 000 - 15000 Pa | 40780441* |
