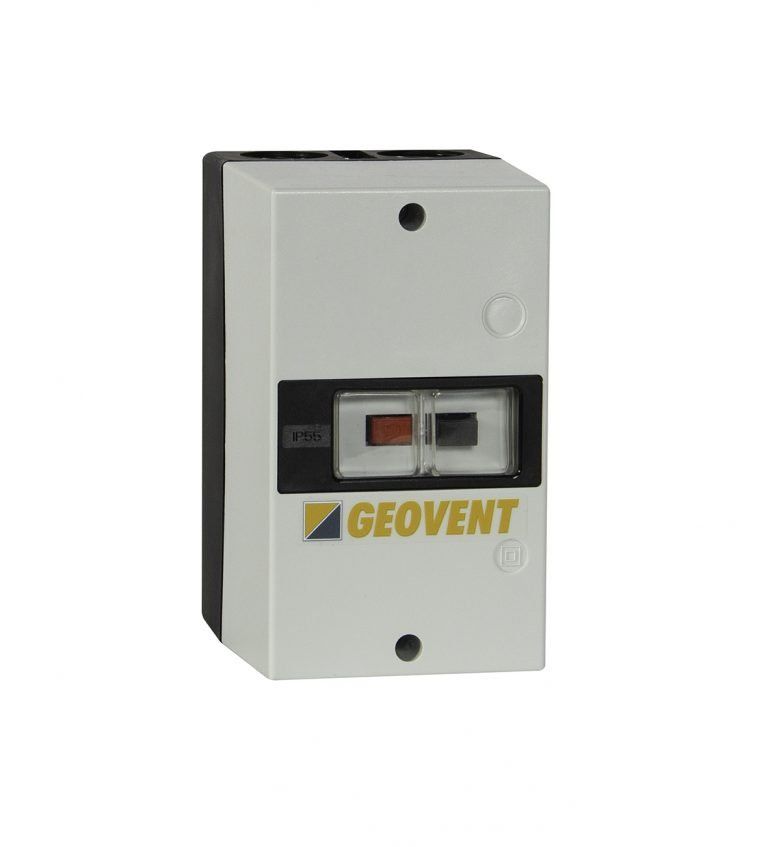

Geovent Manual Circuit Breakers
Part No. 92-200-92-209
Geovent circuit breakers are deigned for use in the industry and it is ideal for use with Geovent fans. This type of circuit breakers are designed for protection of a wide range of single-phase and three-phase AC motors against overload and short circuit. Further it functions as a manual on/off switch. They are used for all kind of AC induction motors and for three-phase motors up to 11 kW.
Normally 7 - 10 Days
£10
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
From £158.76 £132.30
To £205.07 £170.89
Product Details
Feautres
Manual control:
- Start/stop push-buttons incl. test of release function
- Automatic switch-off at over-current with thermal or magnetic release
- Control with under-voltage release or shunt release
- An auxiliary switch for side mounting or flush mounting used for indication of the switching state
- Indication of release
- On/off buttons positions unequivocally indicates switching position of main contacts
Contact material:
- Resistant to contact welding
- Enables low contact heating
- Isolating distance between contacts: 4.5 mm per contact place
Connection of a rigid or flexible conductor. Assembly to a 35 mm wide mounting rail in compliance with EN 60715 is possible. Vertical or horizontal operational position.
