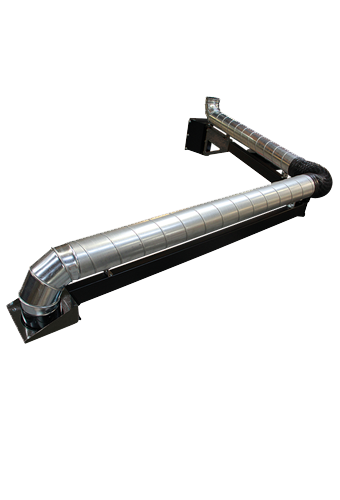

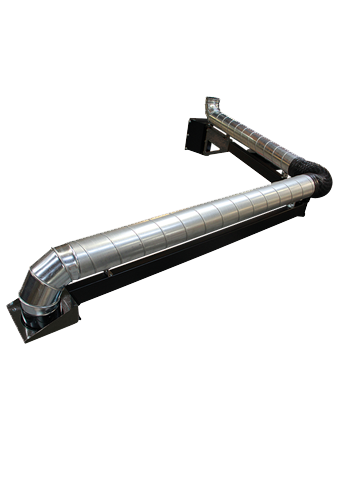

Geovent Extension Arms 2 & 3 m
Part No. 01-181, 01-181A, 01-182, 01-182A
The Geovent Extension Arms can be ordered in lengths from 2 to 5 meters in a straight (1-link) version or up to 4 m with double joints (2 links). The extension arm fits all our arms. It will be possible to obtain a total length of up to 9 meters. Special lengths are available on request.
The extension arm is supplied with piping and flexible joints. It is smoothly operated and easy to position due to the special design and use of cone bearings, framed flange bearings in the joints, and friction discs on the surface. This makes it possible to adjust the friction of the axes by simply adding or reducing tension.
Extension arms extend the WING, COMPACT, and ASA arms. When the WING and COMPACT arms are mounted in the mounting flange, it is possible to turn the arm 360°. When the ASA arms are mounted in the mounting flange, it is possible to turn the arm 270°. The arms are supplied as a kit and designed with focus on ease of installation and ease of use.
