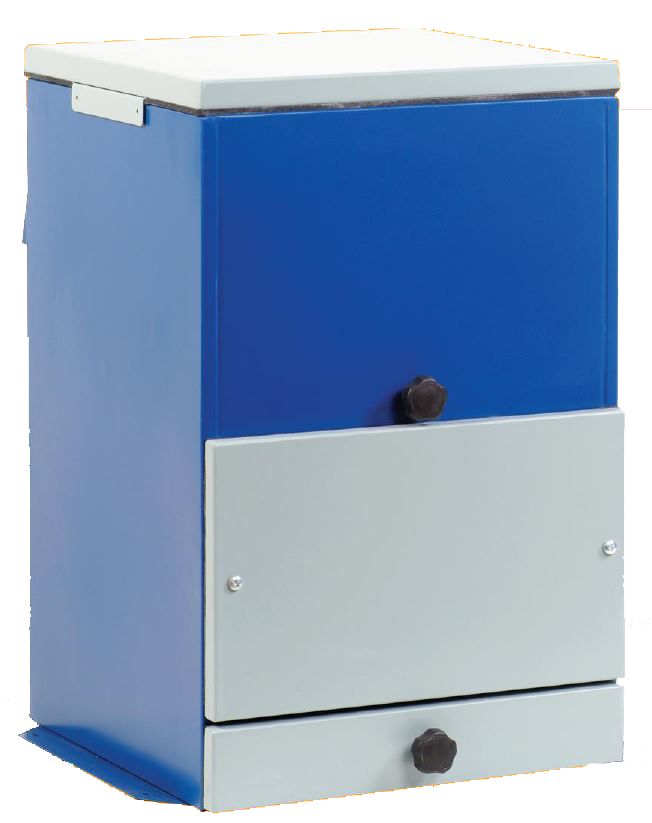

Mardon MS10 Dust Extractor
Part No. MS10
The Mardon MS10 Dust Extractor has been designed for use with small machines such as bench grinders, sanders, polishers and other similar small workshop machines.
- 0.92 m² (10ft ²) filter area.
- Easy to empty 12L waste collection tray.
- Manual mechanism for cleaning of filters.
- Compact and versatile with low noise characteristics.
- Suitable for a variety of dust types.
- Inlet sizes 1 x 80 mm or 2 x 50 mm diameter ports
- Supplied for use with either a 220V/1/50Hz or 400V/3/50Hz supply.
- Options include - HEPA H13 filter assembly, castors, explosion relief.
Unit can also be supplied with NOMEX heat resistant filter for use where the occasional light duty sparks may reach the filter unit. Also available is a separate spark arrestor box which is recommended when grinding / linishing heavily and producing heavier duty sparks
Product Details
Dust laden air is drawn from its source through an extract hood connected to the inlet of the unit by either flexible or rigid ducting. On entering the unit, the dust laden air is given a sudden change of direction which together with the reduction of velocity causes the heavier entrained particles to settle in the dust tray.
The finer particles of dust are deposited onto the inside of the Terylene Needlefelt filter before the clean filtered air continues through the fan, to be discharged back in to the working environment through a noise attenuation chamber
- 0.92 m² (10ft ²) of filter area.
- Compact and versatile with low noise characteristics.
- Easy to maintain.
- Suitable for a variety of dust types.
- Solid industrial construction.
- Options for using extractor as a pedestal for other machines.
- Inlet ports can be located on either side of the extractor.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Machine Width | 500 mm |
Machine Depth | 659 mm |
Machine Height | 790 mm |
Filter Area | 0.92 m² |
Dust Collection Capacity | 12 litre dust tray |
Inlet sizes (standard) | 1 x 80 mm or 2 x 50 mm diameter ports |
Gross Weight | 80 kg |
Motor Power Rating | 0.55 kW 230/1/50 or 400/3/50 |
Full Load Amps | 1 Phase = 7A, 3 Phase = 2.5A |
Filter Condition Monitoring | Differential pressure gauge across filters included |
