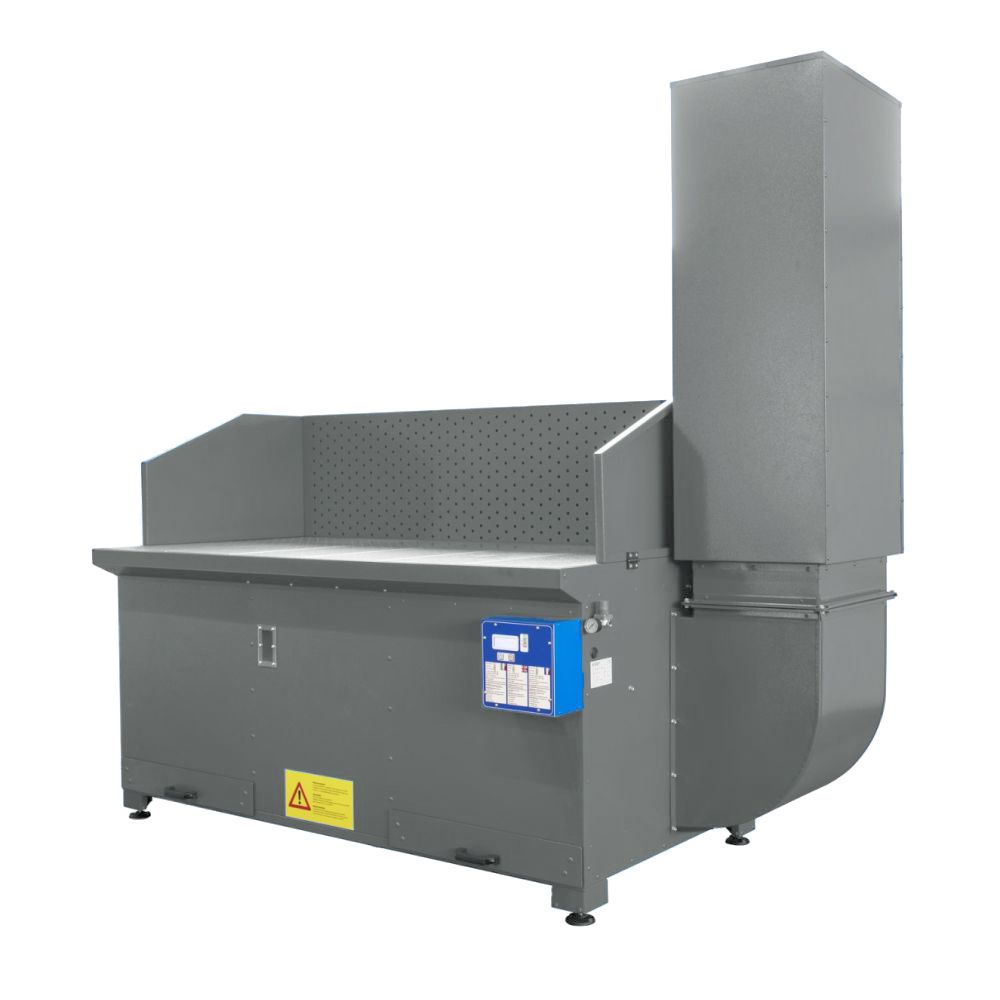

AES BC PLUS Downdraft Extraction Bench for Stone Dust & Masonry

AES's BC PLUS recirculating downdraught bench is the flagship extraction table from the Italian dust and fume experts. It is equipped with a powerful fan and either 2 or 4 highly efficient cleanable cartridge filters. Capable of dealing with heavy duty applications such as granite, marble, limestone, standard brick, concrete and any other stone type containing RCS.

Using compressed air, the filters are cleaned by a pulse system, which frees excess dusts from the filters, causing these dusts to collect in the drawers located at the bottom of the unit. The BC benches are supplied with a 1M silencer, reducing the output noise of the unit and exhausting the clean air at high level.

Side panels on the unit help create a partial enclosure and ensure correct airflow from the downdraught system to further protect the user. An inbuilt pressure gauge constantly monitors system performance.

Power Supply Options:

• BC 10 - 230v Single Phase or 400v 3 Phase
• BC15, BC 20, BC30 - 400v 3 Phase only

TFM = Teflon Flameproof Membrane.
