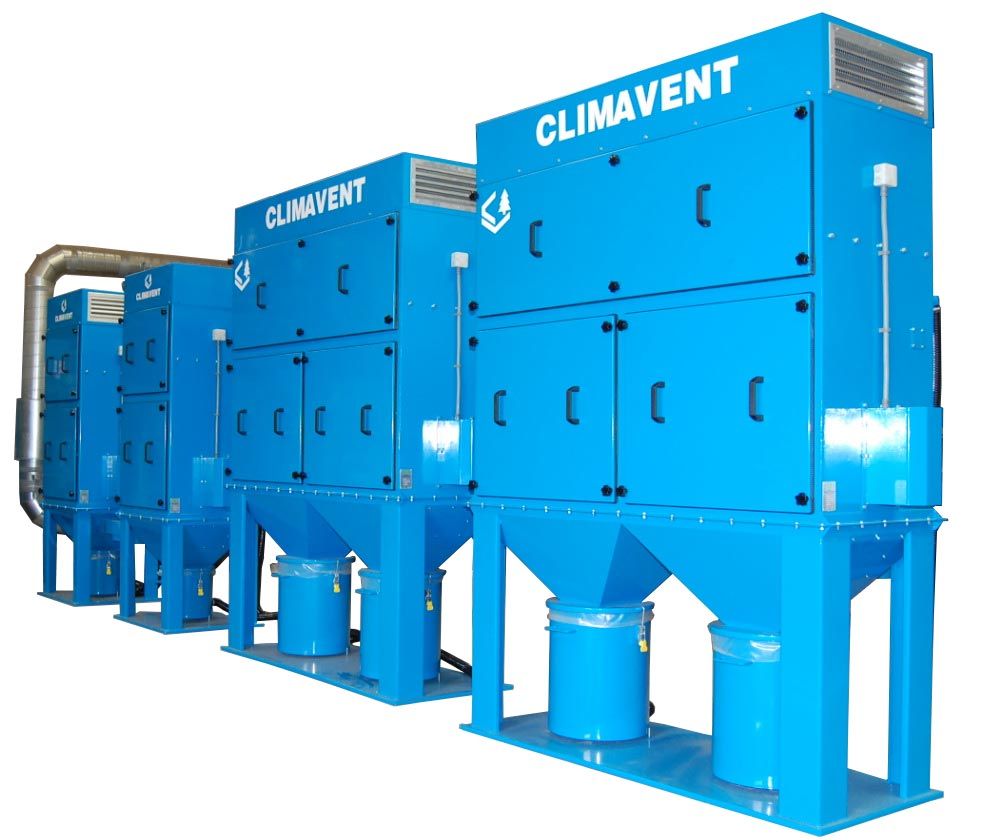

Auto Shaker Units
Part No. PA18-1.5, PA18-3, PA18-4, PA40-3, PA40-5.5
Auto Shaker Units provide dust and fume extraction for many different industries. The Auto Shaker Units are commonly used in conjunction with down draught benches, booths, extraction arms and general dust and fume systems.
£65
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
POA
£0.00 £0.00
Product Details
The Auto Shaker Units consist of a centrifugal fan, filter section with auto shaker, hopper section, and dust collection bin.
The Auto Shaker Units are fitted with a self cleaning auto shake mechanism. This mechanism is activated at pre-determined intervals to shake any unwanted contaminants from the surface of the filter bag. The particles then fall into the collection bin for easy disposal.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Auto Shaker Units
| Model | Air Volume | Motor | Filter Area | Length | Width | Height | Weight |
| PA18-1.5 | 1500 m³/h | 1.5 kW | 18 m² NPF | 986 mm | 812 mm | 2420 mm | 500 kg |
| PA18-3 | 3000 m³/h | 3 kW | 18 m² NPF | 986 mm | 812 mm | 2420 mm | 500 kg |
| PA18-4 | 3500 m³/h | 4 kW | 18 m² NPF | 986 mm | 812 mm | 2420 mm | 500 kg |
| PA40-3 | 3000 m³/h | 3 kW | 40 m² NPF | 2240 mm | 830 mm | 3315 mm | 1000 kg |
| PA40-5.5 | 5500 m³/h | 5.5 kW | 40 m² NPF | 2240 mm | 830 mm | 3315 mm | 1000 kg |
