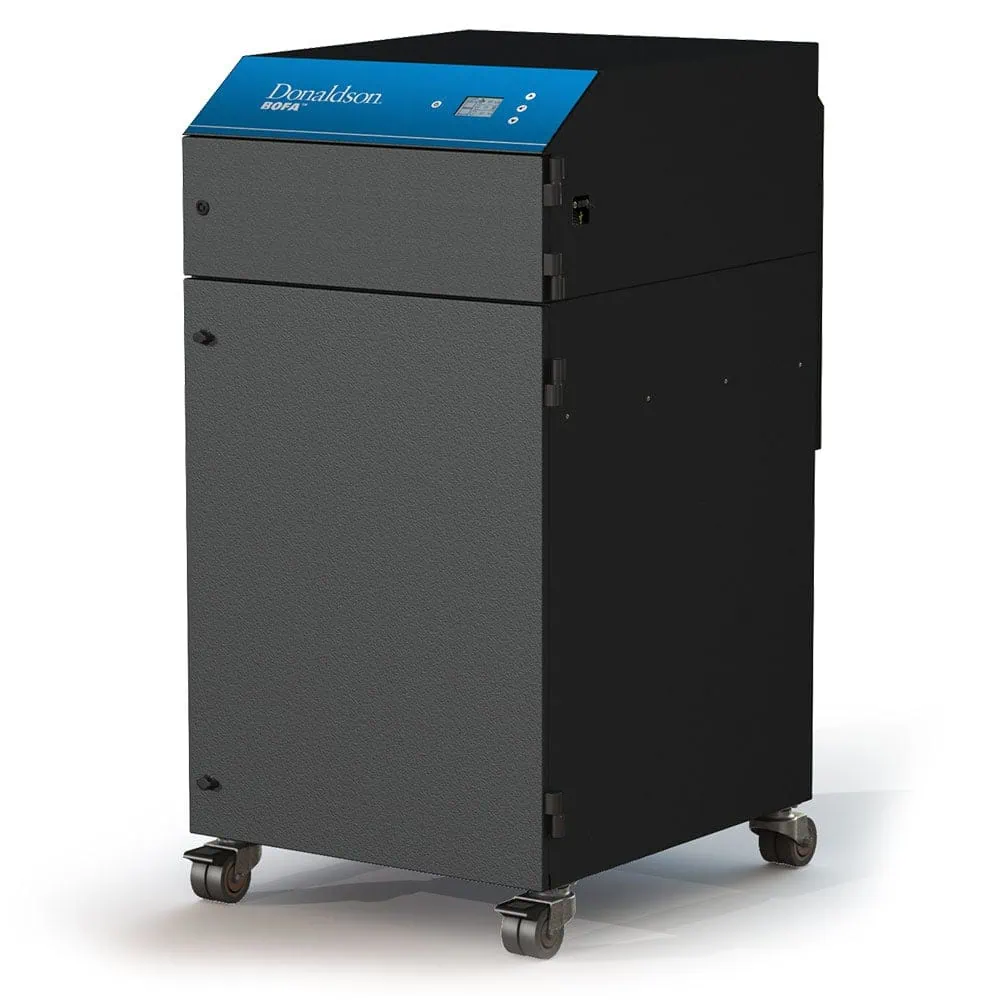

BOFA DustPRO 500 iQ Dust Extractor
Part No. 30811642-1419
The Dust PRO 500 iQ dust extraction systems (also known as the DP500) combine extremely large filter capacity with high airflows and pressure. This combination makes them ideal for heavy duty applications that generate large amounts of particulate. Each system benefits from Automatic Flow Control. This feature enables the end user to set the required airflow for the application. The unit will then maintain this airflow throughout the life cycle of the filter.
Product Details
The Bofa DustPRO 500 iQ dust extraction systems combine extremely large filter capacity with high airflows and pressure. This combination makes them ideal for heavy duty applications that generate large amounts of particulate. Each system benefits from Automatic Flow Control. This feature enables the end user to set the required airflow for the application. The unit will then maintain this airflow throughout the life cycle of the filter.
Developed for the safe and effective removal of swarf and particulates generated during processes such as drilling, routing, mechanical engraving, grinding and turning. The pump used in the DustPRO 500 is brushless and designed for continuous running which can exceed 30,000 hours use before servicing.
FEATURES :
- High Efficiency Filters
- Large Capacity Filter Bag
- Simple Operation
- Quiet Running
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Dimensions (L x W x H) | 790 x 605 x 1215 mm |
Voltage |
230 V - 1 ph. |
Power Consumption | 1.1 kW - 50/60 Hz |
Max. Negative Pressure | 100 mbar |
Max. Airflow | 550 m³/h |
Cabinet Construction | Powder Coated Mild Steel |
Weight | 98 kg |
Bag Filter Surface Area | 2.5 m² (approx.) |
Bag Filter Volume Area | 100 litres (approx.) |
Bag Filter Efficiency | 95% @ 0.9 microns |
HEPA Filter Surface Area | 7.5 m² (approx.) |
HEPA Filter Efficiency | 99.997% @ 0.3 microns |
HEPA Filter Media | Glass Fibre |
Sound Level | <62 dB(A) (at typical operating speed) |
Approvals | CE |
