Bofa DustPRO 50 Dust Extractor
Part Nos. D0242A-D0241A, D0342A, D341A
The DustPRO 50 is a compact dust and swarf extractor used for small scale routing, engraving grinding and turning. Also known as the BOFA DP50.
Delivery normally within 4 weeks
£30
Shipping outside UK - Contact us
Please call for latest availability - 0800 032 0905
£896.22 £746.85
Bofa
BOFA designs, develops and manufactures fume and dust extraction systems for a wide range of industrial sectors and applications.
BOFA creates technologies that protect the health of millions of workers around the world …while at the same time improving industrial process performance by minimising disruption to production.
Product Details

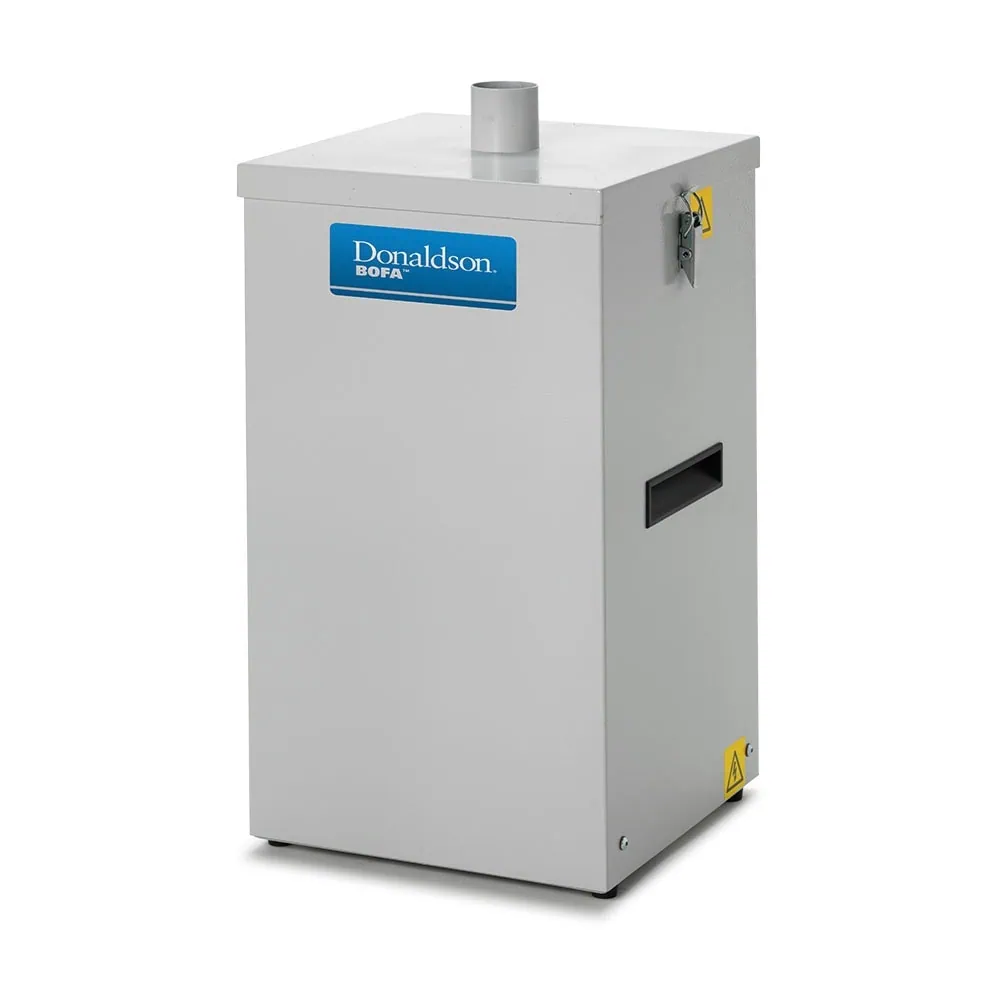

The Bofa DustPRO 50 Dust Extractor has been developed for the safe and effective removal of swarf and smaller particulates during processes such as routing, mechanical engraving, grinding and turning.
One of the main problems with other router extraction relates to the type of pump used. Most have brushed motors which are noisy in operation and frequently burn out, with the average life of brushes being around 800 hours.
The pump used in the DustPRO 50 is brushless and designed for continuous running with minimum 30,000 hours use before servicing.
They generate high vacuums and are quiet in operation. The large capacity bag filter has a very high efficiency.
Spare Parts
Purchasing spares,
made easy.
Technical Specification
Bofa DustPRO 50 Dust Extractor
Dimensions (L x D x H) | 290 x 290 x 535 mm |
Cabinet Construction | Powder Coated Mild Steel |
Airflow / Pressure | 80 m³/hr 100 mbar Brushless Motor |
Electrical Data | 230v 1ph 50/60 Hz |
Full load Current: 2.8 amps / 0.4 kW | |
Fuse Rating: 5 amps | |
Noise Level | < 60 dBA |
Weight | 23 kg |
Bag filter Specifications
Filter Holding Capacity | 6.4 ltrs |
Filter Media | Polyester |
Filter Media Construction | Bag filter |
Filter Efficiency | F8 (95% @ 0.9 microns) |
